APC Back-UPS Series Accessory
Part #: SURT10000XLT-1TF10K | SKU: APC114500

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

Part Details: APC Smart-UPS RT 10kVA Rack-mountable UPS - 4 Minute Full Load - 10kVA - SNMP Manageable

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

Technical Information

Receptacles:
- 2 x Hard Wire 3-wire 2PH + G - Backup/Surge-protected
- 1 x Hard Wire 4-wire 2PH + N + G - Backup/Surge-protected
- 2 x NEMA L14-30R - Backup/Surge-protected
- 2 x NEMA L5-20R - Backup/Surge-protected
- 2 x NEMA L6-20R - Backup/Surge-protected
- 2 x NEMA L6-30R - Backup/Surge-protected
Plug/Connector Type: Hard Wire 3-wire 2PH + G
Interfaces/Ports:
- DB-9 RS-232
- RJ-45

General Information

Product Type: Dual Conversion Online UPS
Product Series: RT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Model: SURT10000XLT-1TF10K

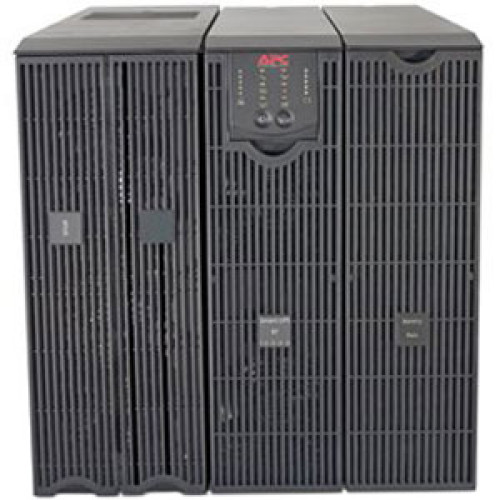

Product Name: Smart-UPS RT 10kVA Tower UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 17"
Width: 17.3"
Depth: 26"
Form Factor: Tower
Weight (Approximate): 465 lb

Interfaces/Ports

Modular Slots: SmartSlot
Interfaces/Ports:
- DB-9 RS-232
- RJ-45

Other

Package Contents:
- Smart-UPS RT 10kVA Tower UPS
- CD with software
- Service Manual
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
- Smart-UPS RT 10kVA Tower UPS
- CD with software
- Service Manual
- Smart UPS signalling RS-232 cable
- User Manual
- Web/SNMP Management Card
Additional Information: Supports both Tower and Rack-mountable configurations but does not include rack mounting kit

Power Description

Input Voltage Range:
- 208 V AC Nominal
- 160 V AC to 280 V AC Mains Operation
Load Capacity: 10 kVA/8 kW
Input Voltage:
- 110 V AC
- 220 V AC
Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
Frequency:
- 50 Hz
- 60 Hz

Battery Information

Batteries: Spill-proof, Maintenance-free Sealed Lead Acid
Backup/Run Time:
- 0.07 Hour 8 kW Full Load
- 0.22 Hour 4 kW Half Load
Battery Recharge Time: 2.20 Hour Typical

Management

Network Management: SNMP Manageable Included
Bypass Switch: Internal
Emergency Power OFF: Yes

Warranty

Limited Warranty: 2 Year
Parts Warranty/Labor: 2 Year

Scalability

Modules: 4 x Battery Module

Extended Details

APC Back-UPS Series Accessory Part #: SURT10000XLT-1TF10K | SKU: APC114500
