| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information

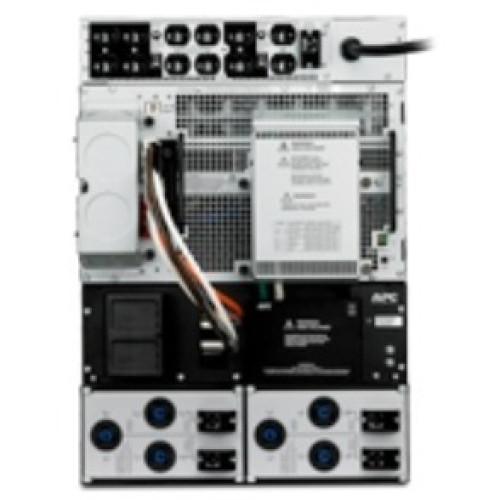

- Receptacles:
- 1 x Hard Wire 3-wire 2PH + G
- 12 x NEMA 5-20R
- 4 x NEMA L6-20R
- 1 x NEMA L6-30R
- Plug/Connector Type: Hard Wire 3-wire 2PH + G
- Interfaces/Ports:
- DB-9 RS-232 Serial
- RJ-45 Network
General Information
- Product Type: Dual Conversion Online UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp
- Product Model: SURT15KRMXLT-TF5

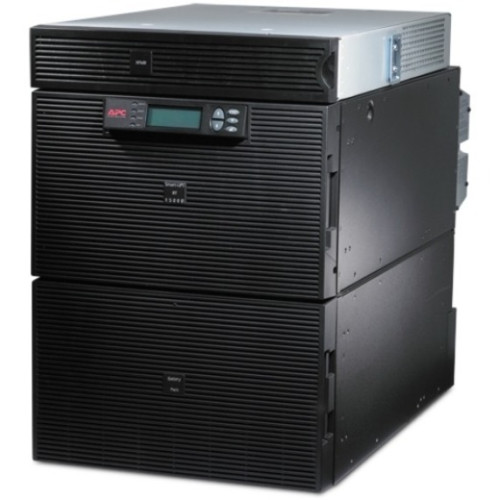

- Product Name: Smart-UPS On-Line SURT15KRMXLT-TF5 15 kVA Tower/Rack Mountable UPS
- Product Line: Smart-UPS
Physical Characteristics
- Height: 24.5"
- Width: 17"
- Depth: 30.4"
- Form Factor: 14U Tower/Rack Mountable
- Weight (Approximate): 641.35 lb
Interfaces/Ports
- Modular Slots: SmartSlot
- Interfaces/Ports:
- DB-9 RS-232 Serial
- RJ-45 Network
Power Description
- Input Voltage Range:
- 208 V AC Nominal
- 160 V AC to 280 V AC Mains Operation
- Load Capacity: 15 kVA/12 kW
- Input Voltage: 220 V AC
- Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
- Current: 83 A Input
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
- Frequency:
- 50 Hz Input
- 60 Hz Input
- 50 Hz Output
- 60 Hz Output
- Input Current: 83 A
Management
- Network Management: SNMP Manageable Included
- Bypass Switch:
- Automatic
- External (Optional)
- Internal
- Manual
- Static
- Emergency Power OFF: Yes
- Overload Protection: Resettable circuit breaker
Battery Information
- Batteries: 4 x Maintenance-free, Sealed, Spill-proof Lead Acid User Replaceable Hot-swappable
- Backup/Run Time: 0.13 Hour 12 kW Full Load
- Battery Recharge Time: 2.50 Hour Typical
Scalability
- Modules: 4 x Battery Module
Warranty
- Limited Warranty: 2 Year
