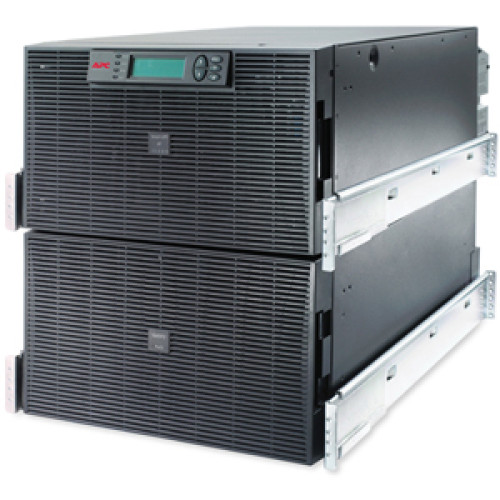

APC Back-UPS Series UPS
Part #: SURT15KRMXLT | SKU: APC172464

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

Part Details: Smart-UPS RT 15kVA RM 208V

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $27,795.00 Price: $23,350.09

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

Technical Information

Receptacles:
- 1 x Hard Wire 3-wire 2PH + G
- 2 x NEMA L6-30R
- 4 x NEMA L6-20R
Plug/Connector Type: Hard Wire 3-wire 2PH + G
Interfaces/Ports:
- DB-9 RS-232
- RJ-45 Network

General Information

Product Type: Dual Conversion Online UPS
Product Series: RT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS RT 15kVA Tower/Rack-mountable UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 21"
Width: 17"
Depth: 30"
Form Factor: 12U Tower/Rack Mountable
Weight (Approximate): 545 lb

Interfaces/Ports

Modular Slots: SmartSlot
Interfaces/Ports:
- DB-9 RS-232
- RJ-45 Network

Other

Package Contents:
- Smart-UPS RT 15kVA Tower/Rack Mountable UPS
- CD with Software
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- User Manual
- Web/SNMP Management Card
- 4 x Battery Modules
- Smart-UPS RT 15kVA Tower/Rack Mountable UPS
- CD with Software
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- User Manual
- Web/SNMP Management Card
- 4 x Battery Modules

Power Description

Input Voltage Range:
- 208 V AC Nominal
- 160 V AC to 280 V AC Mains Operation
Load Capacity: 15 kVA/12 kW
Input Voltage: 220 V AC
Output Voltage: 208 V AC Nominal
Current: 85 A Maximum Input Current
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
Frequency: 40 to 70 Hz
Input Current: 85 A

Management

Network Management: SNMP Manageable Included
Bypass Switch:
- Automatic
- External (Optional)
- Manual
- Static
Emergency Power OFF: Yes
Overload Protection: 100A Input Breaker Capacity

Battery Information

Batteries: Maintenance-free, Sealed, Spill-proof Lead Acid User Replaceable Hot-swappable
Backup/Run Time:
- 0.14 Hour 12 kW Full Load
- 0.37 Hour 6 kW Half Load
Battery Recharge Time: 2.50 Hour Typical

Scalability

Modules: 4 x Battery Module

Warranty

Limited Warranty: 2 Year

Extended Details

APC Back-UPS Series UPS Part #: SURT15KRMXLT | SKU: APC172464
