| Manufacturer | APC |
|---|---|
| Model Name | Parts |
Technical Information
- Receptacles:
- 8 x NEMA 5-20R - Backup/Surge-protected
- 1 x NEMA L14-30R - Backup/Surge-protected
- 4 x NEMA L6-20R - Backup/Surge-protected
- 2 x NEMA L6-30R - Backup/Surge-protected
- Plug/Connector Type: NEMA L6-30P
- Interfaces/Ports: DB-25 RS-232 Serial
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: RT
- Brand Name: APC
- Manufacturer: American Power Conversion Corp
- Product Model: SURT6000XLT-1TF3

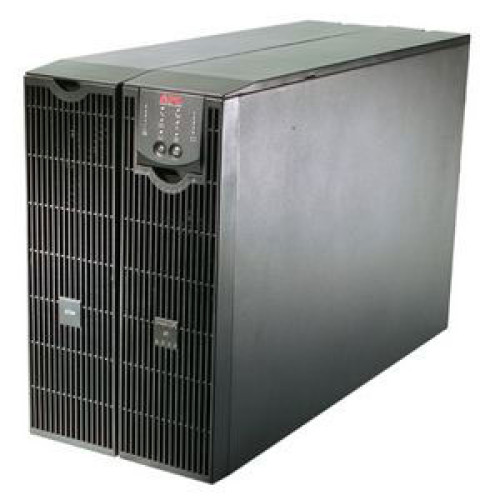

- Product Name: Smart-UPS RT 6kVA Tower UPS
- Product Line: Smart-UPS
Physical Characteristics
- Height: 17"
- Width: 10.2"
- Depth: 26"
- Form Factor: Tower
- Weight (Approximate): 245 lb
Interfaces/Ports
- Modular Slots: SmartSlot
- Interfaces/Ports: DB-25 RS-232 Serial
Power Description
- Input Voltage Range:
- 208 V AC Nominal
- 160 V AC to 280 V AC Mains Operation
- 100 V AC to 280 V AC Adjustable Mains Operation
- Load Capacity: 6 kVA/4.20 kW
- Input Voltage:
- 110 V AC
- 220 V AC
- Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
- Frequency:
- 50 Hz
- 60 Hz
Other
- Package Contents:
- Smart-UPS RT 6kVA Tower UPS
- CD with Software
- Smart UPS Signalling RS-232 Cable
- User Manual
- Web/SNMP Management Card
- Smart-UPS RT 6kVA Tower UPS
- CD with Software
- Smart UPS Signalling RS-232 Cable
- User Manual
- Web/SNMP Management Card
- Additional Information: Supports both Tower and Rack-mountable configurations but does not include rack mounting kit
Battery Information
- Batteries: Spill-proof, Maintenance-free Sealed Lead Acid
- Backup/Run Time:
- 0.09 Hour 4.20 kW Full Load
- 0.26 Hour 2.10 kW Half Load
- Battery Recharge Time: 2.50 Hour Typical
Management
- Network Management: SNMP Manageable Included
- Bypass Switch: Internal
- Emergency Power OFF: Yes
Warranty
- Limited Warranty: 2 Year
- Parts Warranty/Labor: 2 Year
Scalability
- Modules: 2 x Battery Module
