| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: RT
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

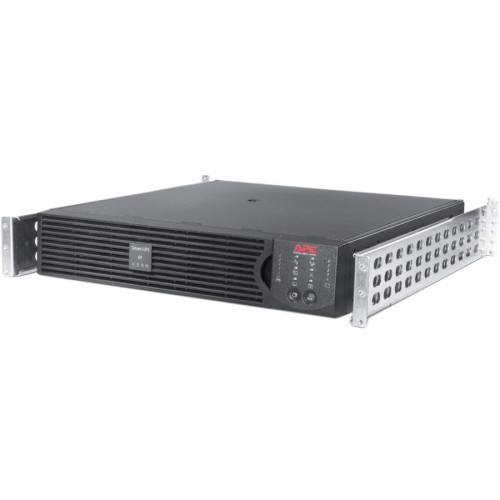

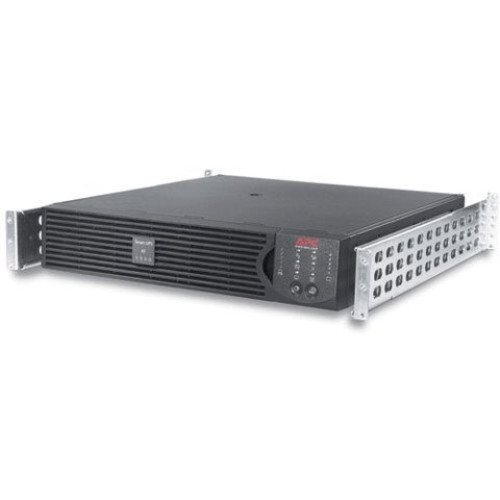

- Product Name: Smart-UPS RT 1500VA Tower/Rack-mountable UPS
- Product Line: Smart-UPS
Technical Information
- Receptacles: 6 x NEMA 5-15R
- Plug/Connector Type: NEMA 5-15P
- Bypass Switch: Provided
- Emergency Power OFF: Yes
Physical Characteristics
- Height: 3.4"
- Width: 17"
- Depth: 22"
- Rack Height: 2U
- Form Factor: Tower/Rack Mountable
- Weight (Approximate): 60.50 lb
Interfaces/Ports
- USB: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- Smart-UPS RT 1500VA Tower/Rack-mountable UPS
- CD with software
- Documentation CD
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- 1 x Battery Module
- Smart-UPS RT 1500VA Tower/Rack-mountable UPS
- CD with software
- Documentation CD
- Rack Mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- User Manual
- 1 x Battery Module
- Certifications & Standards: BSMI, CSA, FCC Part 15 Class B, UL 1778
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Backup/Run Time (Half Load): 22.20 Minute
- Backup/Run Time (Full Load): 8.60 Minute
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Sealed Lead Acid
Power Description
- Load Capacity (VA): 1500 VA
- Load Capacity (Watt): 1050 W
- Input Voltage: 110 V AC
- Output Voltage: 120 V AC
Warranty
- Limited Warranty: 2 Year
