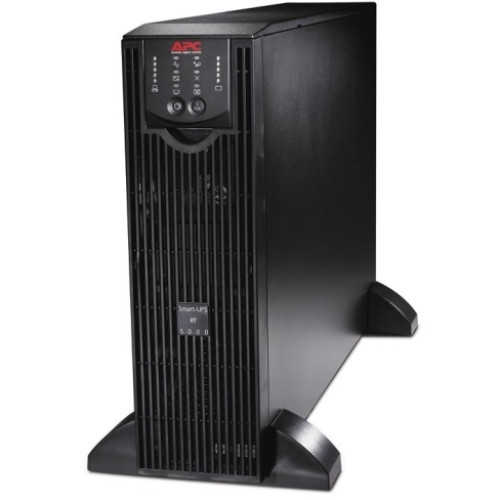

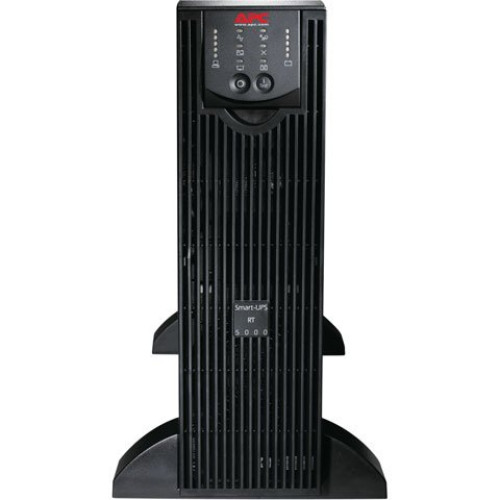

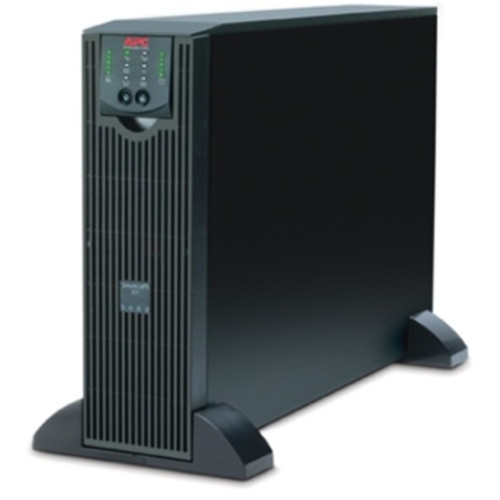

APC Back-UPS Series UPS
Part #: SURTD5000XLI | SKU: APC145192

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series UPS

Part Details: APC Smart-UPS RT 5000VA Rack-mountable UPS - 5000VA/3500W - 5 Minute Full Load - 8 x IEC 320-C13 - Battery/Surge-protected, 2 x IEC 320-C19 - Battery/Surge-protected, 6 x - Battery/Surge-protected

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

Technical Information

Receptacles:
- 8 x IEC 320-C13
- 2 x IEC 320-C19
- 6
Plug/Connector Type: Hard Wire 3-wire
Bypass Switch: Internal
Emergency Power OFF: Yes

General Information

Product Type: Dual Conversion Online UPS
Product Series: RT
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Smart-UPS RT 5000VA Rack-mountable UPS
Product Line: Smart-UPS

Physical Characteristics

Height: 17"
Width: 5.1"
Depth: 26"
Rack Height: 3U
Weight (Approximate): 120 lb

Interfaces/Ports

Network (RJ-45): Yes

Battery Information

Maximum Battery Recharge Time: 2.50 Hour
Backup/Run Time (Half Load): 15.40 Minute
Backup/Run Time (Full Load): 5 Minute
Battery Characteristics: Spill-proof, Maintenance-free
Battery Chemistry: Sealed Lead Acid

Power Description

Load Capacity (VA): 5000 VA
Load Capacity (Watt): 3500 W
Input Voltage: 220 V AC
Output Voltage: 230 V AC

Warranty

Limited Warranty: 2 Year

Other

Certifications & Standards: UL 1449, C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 60950, EN 61000-3-2, GOST, VDE

Extended Details

APC Back-UPS Series UPS Part #: SURTD5000XLI | SKU: APC145192
