| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information
- Receptacles: 1 x Hard Wire 5-wire (3PH + N + G)
- Plug/Connector Type: Hard Wire 5-wire (3PH + N + G)
- Bypass Switch:
- Static
- Maintenance
- Emergency Power OFF: Optional
General Information
- Product Type: Standby UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

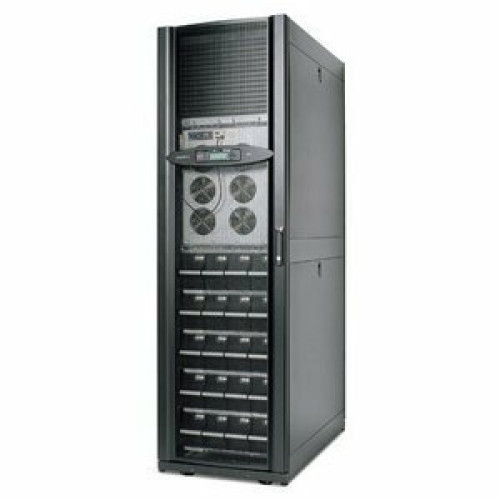

- Product Name: Smart-UPS VT 20kVA Rack-mountable UPS
- Product Line: Smart-UPS
Physical Characteristics
- Height: 78.5"
- Width: 23.6"
- Depth: 42.3"
- Form Factor: Rack-mountable
- Weight (Approximate): 2090 lb
Other
- Package Contents:
- Smart-UPS VT 20kVA RM UPS
- User Manual
- Start up Guide
- Installation Guide
- Web/SNMP Management Card
- Smart UPS signalling RS-232 cable
- Smart-UPS VT 20kVA RM UPS
- User Manual
- Start up Guide
- Installation Guide
- Web/SNMP Management Card
- Smart UPS signalling RS-232 cable
- Certifications & Standards:
- cUL Listed
- ISO 14001
- ISO 9001
- UL 1778
- Additional Information:
- Cold-start capability provides temporary battery power when the utility power is out
- Maximized battery performance, life, and reliability through intelligent, precision
- Multiple cable-entry points
- Field-replaceable power distribution panel
Power Description
- Load Capacity (VA): 20 kVA
- Load Capacity (Watt): 16 kW
- Input Voltage:
- 110 V AC
- 220 V AC
- Output Voltage:
- 220 V AC
- 208 V AC
Battery Information
- Battery Chemistry: Valve-regulated Lead Acid (VRLA)
Management
- Network Management: SNMP Manageable
Warranty
- Limited Warranty: 1 Year
