General Information
- Product Type: Dual Conversion Online UPS
- Product Series: PX
- Brand Name: APC
- Manufacturer: American Power Conversion Corp
- Product Model: SY20K100F

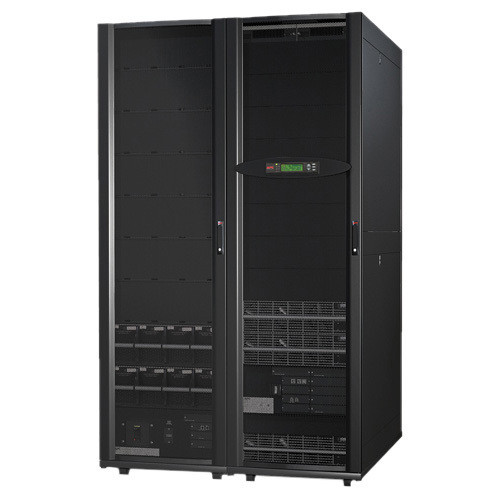

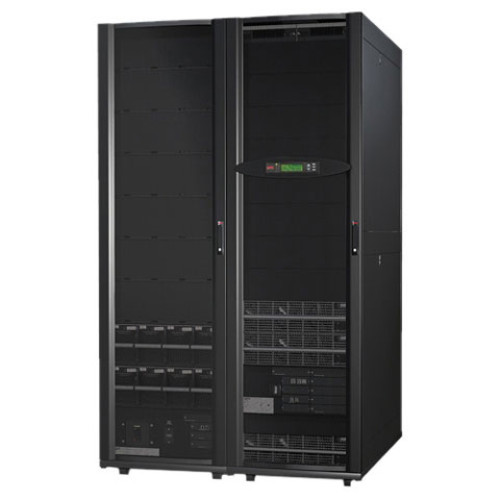

- Product Name: Symmetra PX SY20K100F 20kVA Tower UPS
- Product Line: Symmetra
Technical Information
- Receptacles: 1 x Hard Wire 5-wire 3PH + N + G
Physical Characteristics
- Height: 79.2"
- Width: 47.2"
- Depth: 42.1"
- Form Factor: Tower
- Weight (Approximate): 1994.59 lb
Interfaces/Ports
- Modular Slots:
- 7 x Battery
- 2 x SmartSlot
Power Description
- Input Voltage Range:
- 208 V AC 3-phase Nominal
- 177 V AC to 239 V AC Mains Operation
- Load Capacity: 20 kVA/20 kW
- Input Voltage: 220 V AC
- Output Voltage: 208 V AC 3-phase Nominal
- Current: 332 A Maximum Input Current
- Frequency:
- 57 Hz to 63 Hz Output
- 40 Hz to 70 Hz Input
- Input Current: 332 A
Other
- Package Contents:
- Symmetra PX SY20K100F 20kVA Tower UPS
- Installation Guide
- Network Management Card
- User Manual
- 2 x Battery Modules
- Symmetra PX SY20K100F 20kVA Tower UPS
- Installation Guide
- Network Management Card
- User Manual
- 2 x Battery Modules
Management
- Network Management: SNMP Manageable Included
- Bypass Switch:
- Static
- Automatic
- Internal
Battery Information
- Batteries: Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
- Backup/Run Time: 0.10 Hour 20 kW Full Load
- Battery Recharge Time: 2 Hour Typical
Scalability
- Modules: 2 x Battery Module
- Power Range: 20 kVA to 100 kVA / 20 kW to 100 kW
Warranty
- Limited Warranty: 1 Year
