APC Back-UPS Series Specs
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: PX
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

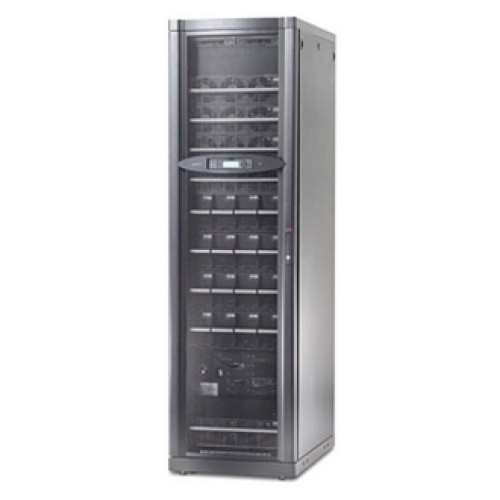

- Product Name: Symmetra PX 40kW UPS
- Product Line: Symmetra
Technical Information
- Receptacles: 1 x Screw Terminal
- Plug/Connector Type: Hardwired
- Bypass Switch: Static
- Emergency Power OFF: Yes
Physical Characteristics
- Height: 82"
- Width: 24"
- Depth: 35.5"
- Rack Height: 42U
- Weight (Approximate): 1705 lb
- Color: Black
Interfaces/Ports
- Network (RJ-45): Yes
- Total Number of Expansion Slots: 2
Other
- Package Contents:
- User Manual
- Web/SNMP Management Card
- User Manual
- Web/SNMP Management Card
- Certifications & Standards:
- cUL Listed
- EN 50091-1
- EN 50091-2
- FCC Part 15 Class A
- ISO 14001
- ISO 9001
- UL 1778
- UL 60950
- Additional Information:
- Audible Alarms
- Automatic Self Test
- Battery modules connected in parallel
- Cold-start
- Compact Design
- Early-warning Problem Notification
- Easy Maintenance
- Event logging
- Front-access servicing
- Full-rated Power with kVA equaling kW
- Galvanic isolation
- Generator Compatible
- Hot Swap Electronics
- Input Power Factor Correction
- LCD AlphaNumeric Display
- Load Meter
- Menu-driven Operating Instructions
- Modular Fault-tolerant Design
- Modular-level Repair
- Multiple System Shutdown
- N+1 Redundancy
- Out-of-Band Management
- Overload Indicator
- Pager notification
- Programmable power event response
- Rated for Power-Factor Corrected Loads
- Revolutionary Modular Design for built-In Fault-Tolerance
- Scalable Power Capacity
- Scalable Run Time
- Smallest footprint
- Wide input voltage range
Battery Information
- Maximum Battery Recharge Time: 3 Hour
- Backup/Run Time (Half Load): 14.50 Minute
- Backup/Run Time (Full Load): 3.80 Minute
- Battery Characteristics: Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Management
- Network Management: SNMP Manageable
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
Power Description
- Load Capacity (VA): 40 kVA
- Power Consumption: 40000 W
- Output Voltage: 208 V AC
- Waveform Type: Sine Wave
Environmental Conditions
- Temperature: 104°F (40°C)
- Thermal Dissipation: 11611 BTU/h
- Sound Emission: 64 dB(A)
Warranty
- Limited Warranty: 2 Year
