| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |
APC Back-UPS Series Specs
Technical Information
- Receptacles:
- 1 x Hard Wire 3-wire H N + G
- 8 x IEC 320-C13
- 10 x IEC 320-C19
- Plug/Connector Type:
- Hard Wire 3-wire PH + N + G
- Hard Wire 5-wire 3PH + N + G
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: LX
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

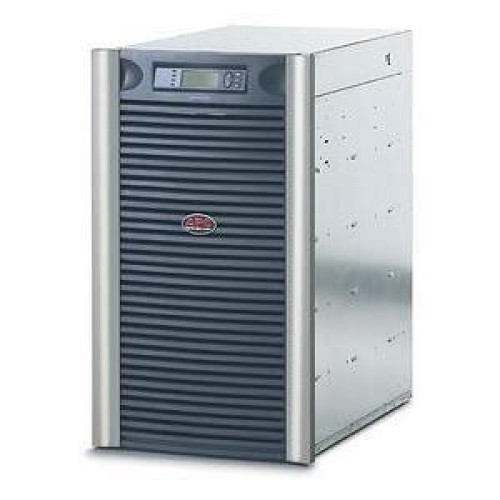

- Product Name: Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mountable UPS
- Product Line: Symmetra
Physical Characteristics
- Height: 33"
- Width: 19"
- Depth: 27"
- Form Factor: 19U Rack-mountable
- Weight (Approximate): 631 lb
- Color:
- Black
- Silver
Interfaces/Ports
- Modular Slots: 1 x SmartSlot
Other
- Package Contents:
- Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mountable
- CD with software
- Documentation CD
- Installation Guide
- User Manual
- Web/SNMP Management Card
- Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mountable
- CD with software
- Documentation CD
- Installation Guide
- User Manual
- Web/SNMP Management Card
- Certifications & Standards:
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- EN 55022 Class A
- EN 55024
- EN 60950
- GOST
- IEC 60950
- VDE
- Additional Information:
- Automatic restart of loads after UPS shutdown
- Audible and visible alarms prioritized by severity
- InfraStruXure Manager Compatible
- Plug-and-Play external batteries
- Configurable for 220, 230 or 240 nominal output voltage
Power Description
- Input Voltage Range:
- 230 V AC Nominal
- 400 V AC 3-phase Nominal
- 290 V AC to 480 V AC 3-phase Mains Operation
- 155 V AC to 276 V AC Mains Operation
- Load Capacity: 16 kVA/11.20 kW
- Input Voltage: 440 V AC
- Output Voltage: 230 V AC Nominal
- Frequency:
- 45 to 65 Hz Input
- 47 to 63 Hz Output
- Waveform Type: Sine Wave
Environmental Conditions
- Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 15000 ft Storage
- Humidity:
- 0 to 95% Relative Humidity Operating
- 0 to 95% Relative Humidity Storage
- Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 5°F (-15°C) to 113°F (45°C) Storage
- Thermal Dissipation: 3707 BTU/h
Management
- Network Management: SNMP Manageable
- Battery Management: Intelligent Battery Management
- Bypass Switch:
- Automatic
- Manual
- Emergency Power OFF: Yes
- Overload Protection: Resettable circuit breakers
Battery Information
- Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
- Backup/Run Time:
- 0.13 Hour 11.20 kW Full Load
- 0.34 Hour 5.60 kW Half Load
Warranty
- Limited Warranty: 2 Year
- Parts Warranty/Labor: 2 Year
Controls/Indicators
- Control Panel: Multi-function LCD status and control console
