| Manufacturer | APC |
|---|---|
| Model Name | Parts |
Technical Information
- Receptacles:
- 1 x Hard Wire 4-wire
- 4 x NEMA L14-30R
- 8 x NEMA L5-20R
- Plug/Connector Type: Hard Wire 4-wire
- Interfaces/Ports: DB-9 RS-232 Serial
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: LX
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

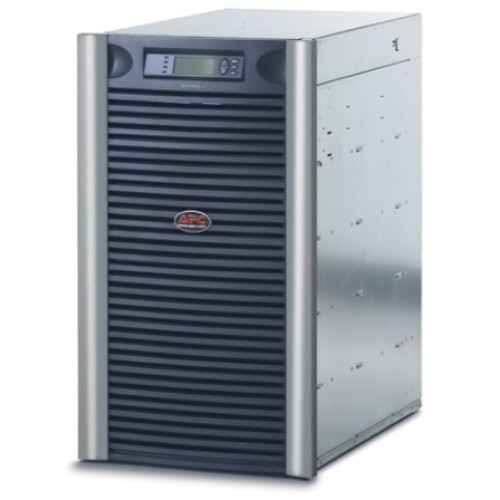

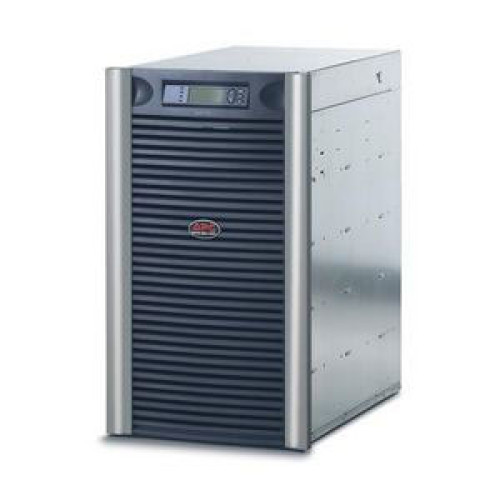

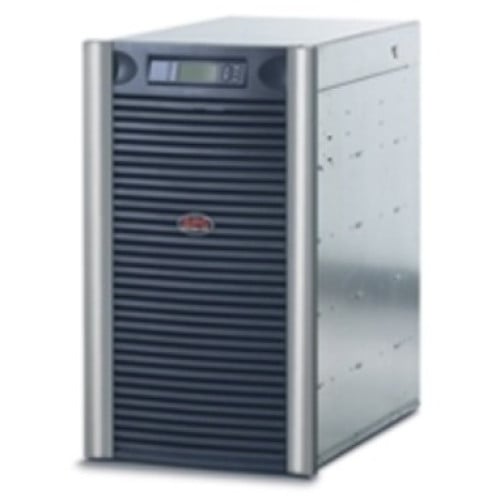

- Product Name: Symmetra LX 16kVA Rack-Mountable UPS
- Product Line: Symmetra
Physical Characteristics
- Height: 32.9"
- Width: 18.6"
- Depth: 27.1"
- Form Factor: 19U Rack-mountable
Interfaces/Ports
- Modular Slots: 1 x SmartSlot
- Interfaces/Ports: DB-9 RS-232 Serial
Management
- Network Management: SNMP Manageable Included
- Bypass Switch:
- Automatic
- External (Optional)
- Internal
- Manual
- Emergency Power OFF: Yes
- Overload Protection: Resettable circuit breakers
Battery Information
- Batteries: Spill-proof, Maintenance-free Lead Acid User Replaceable Hot-swappable
- Backup/Run Time:
- 0.10 Hour
- 0.28 Hour
- Battery Recharge Time: 3 Hour Typical
Power Description
- Input Voltage Range:
- Nominal
- Mains Operation
- Load Capacity: 16 kVA/12.80 kW
- Input Voltage: 220 V AC
Scalability
- Modules: 4 x Battery Module
