General Information
- Product Type: Dual Conversion Online UPS
- Product Series: LX
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

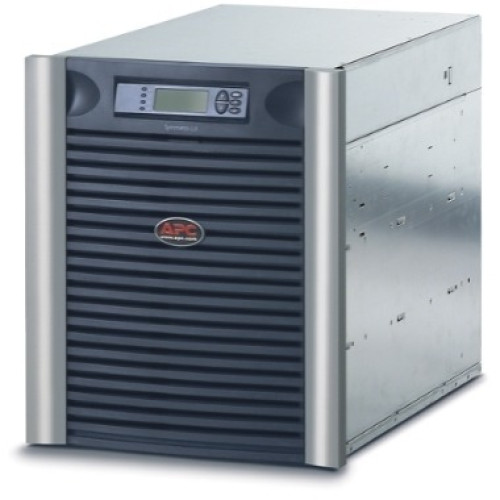

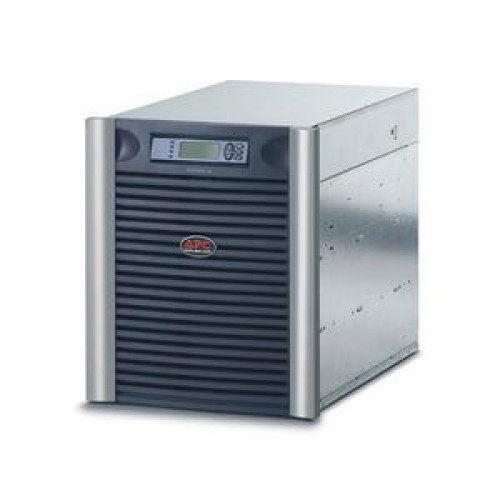

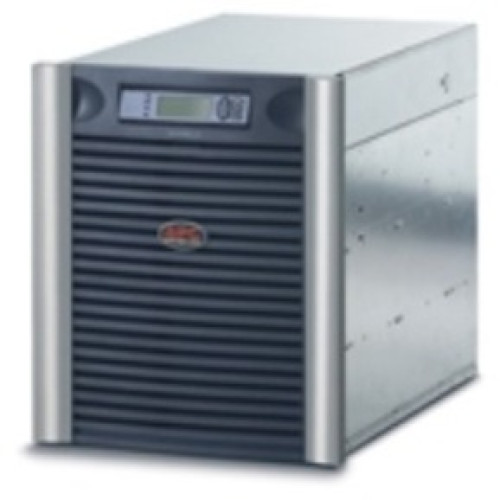

- Product Name: Symmetra LX 8kVA Rack mountable UPS
- Product Line: Symmetra
Technical Information

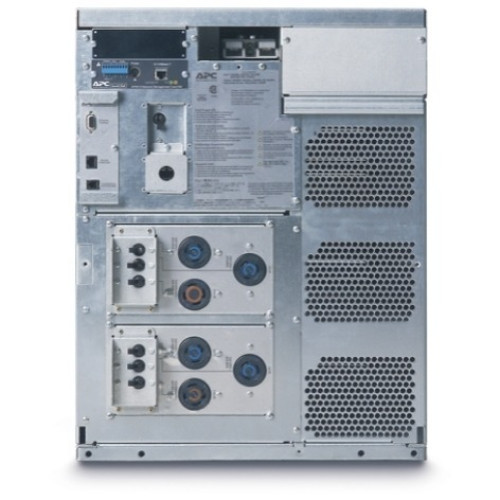

- Receptacles:
- 1 x Hard Wire 4-wire 2PH + N + G
- 2 x NEMA L14-30R
- 4 x NEMA L5-20R
- Plug/Connector Type: Hard Wire 4-wire 2PH + N + G
Physical Characteristics
- Height: 23"
- Width: 19"
- Depth: 27"
- Form Factor: 13U Rack-mountable Tower
- Weight (Approximate): 392 lb
- Color:
- Black
- Silver
Interfaces/Ports
- Modular Slots: 1 x SmartSlot
Other
- Package Contents:
- Symmetra LX 8kVA Rack mountable UPS
- CD with software
- Documentation CD
- Installation Guide
- User Manual
- Web/SNMP Management Card
- Symmetra LX 8kVA Rack mountable UPS
- CD with software
- Documentation CD
- Installation Guide
- User Manual
- Web/SNMP Management Card
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- Additional Information:
- Output Voltage Distortion: less than 5% at full load
- Crest Factor: up to 5 : 1
- Pre-Installed Batteries: 2
- Replacement battery cartridge Quantity: 2
Management
- Network Management: SNMP Manageable
- Battery Management: Intelligent Battery Management
- Alarm:
- Low Battery
- Overload
- UPS Fault
- Bypass Switch:
- Automatic & Manual
- External (Optional)
- Emergency Power OFF: Yes
- Overload Protection: Resettable circuit breakers
Environmental Conditions
- Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 15000 ft Storage
- Humidity:
- 0 to 95% Relative Humidity Operating
- 0 to 95% Relative Humidity Storage
- Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 5°F (-15°C) to 113°F (45°C) Storage
- Thermal Dissipation: 3707 BTU/h
Controls/Indicators
- Status Indicators:
- On-line
- On-battery
- Command-Bypass
- Fault
- Control Panel: Multi-function LCD status and control console
Battery Information
- Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
- Backup/Run Time:
- 0.10 Hour 6.40 kW Full Load
- 0.28 Hour 3.20 kW Half Load
Power Description
- Load Capacity: 8 kVA/6.40 kW
- Waveform Type: Sine Wave
Warranty
- Limited Warranty: 2 Year
- Parts Warranty/Labor: 2 Year
Scalability
- Power Range: 8 kVA to 8 kVA / 6.40 kW to 6.40 kW
