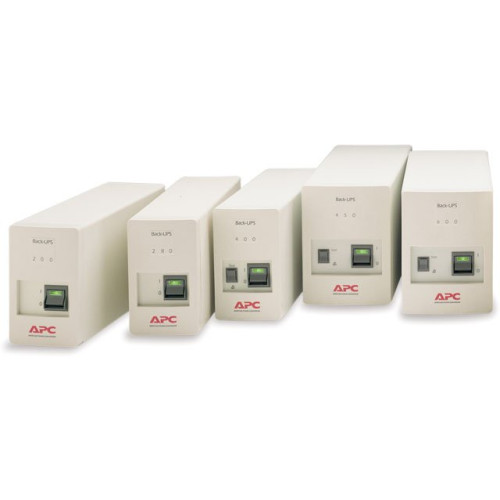

APC Back-UPS Series Accessory
Part #: SYH4K6RMI | SKU: APC47067

The Back-UPS Series provides an emergency backup power supply that allows you to shutdown your system in the case of power outages. The Back-UPS Series automatically switches on and provides high-performance surge protection from electrical noise and power surges.

APC Back-UPS Series Accessory

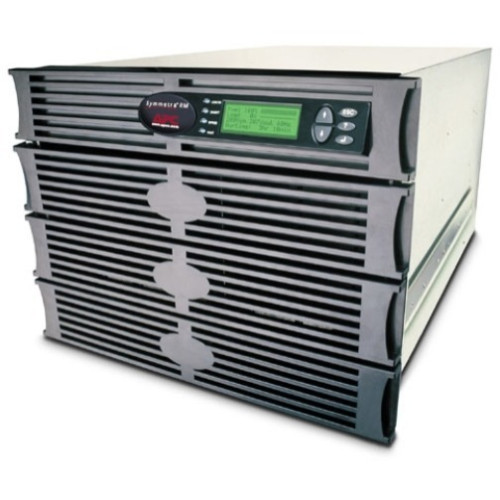

Part Details: APC Symmetra RM 4kVA Scalable to 6kVA UPS - 12.7 Minute Full Load, 30.2 Minute Half Load - 4kVA - SNMP Manageable

Need a different version of the APC Back-UPS Series Accessory? View all 485 configurations

MSRP: $12,580.00 Price: $10,570.30

Additional Information

Manufacturer AIDC	APC
Model Name	Back-UPS Series

APC Back-UPS Series Specs (pdf)

General Information

Product Type: Dual Conversion Online UPS
Product Series: RM
Brand Name: APC
Manufacturer: American Power Conversion Corp
Product Name: Symmetra RM 4kVA Scalable to 6kVA UPS
Product Line: Symmetra

Technical Information

Receptacles:
- 8 x IEC 320-C13
- 2 x IEC 320-C19
Plug/Connector Type: Hard Wire 3-wire

Physical Characteristics

Height: 14"
Width: 19"
Depth: 29"
Form Factor: 8U Rack-mountable
Weight (Approximate): 229 lb
Color: Black

Interfaces/Ports

Modular Slots: 1 x SmartSlot

Other

Package Contents:
- Symmetra UPS
- Software CD
- Rack Mounting Brackets
- Rack Mounting support rails
- User Manual
- Symmetra UPS
- Software CD
- Rack Mounting Brackets
- Rack Mounting support rails
- User Manual
Certifications & Standards:
- C-tick
- EN 50091-2
- VDE
Additional Information:
- Automatic Self Test
- Battery modules connected in parallel
- Input Power Factor Correction
- LCD AlphaNumeric Display
- N+1 Redundancy
- Scalable Power Capacity
- Scalable Run Time
- Wide input voltage range

Environmental Conditions

Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 50000 ft Storage
Humidity:
- 0 to 95% Relative Humidity Operating
- 0 to 95% Non-condensing Relative Humidity Storage
Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 5°F (-15°C) to 113°F (45°C) Storage
Thermal Dissipation: 1181 BTU/h

Power Description

Input Voltage Range:
- 230 V AC Nominal
- 155 V AC to 276 V AC Mains Operation
Load Capacity: 4 kVA/2.80 kW
Input Voltage: 220 V AC
Output Voltage: 230 V AC Nominal
Frequency:
- 50 Hz Input
- 60 Hz
Waveform Type: Sine Wave

Management

Network Management: SNMP Manageable
Battery Management: Intelligent Battery Management
Alarm:
- Low Battery
- On Battery
Bypass Switch:
- Automatic
- Manual
Emergency Power OFF: Yes

Controls/Indicators

Status Indicators:
- Overload
- Replace Battery
Control Panel: Multi-function LCD status and control console

Battery Information

Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time:
- 0.21 Hour 2.80 kW Full Load
- 0.50 Hour 1.40 kW Half Load

Warranty

Limited Warranty: 2 Year
Parts Warranty/Labor: 2 Year

Scalability

Power Range: 4 kVA to 6 kVA /

Extended Details

APC Back-UPS Series Accessory Part #: SYH4K6RMI | SKU: APC47067
