| Manufacturer AIDC | APC |
|---|---|
| Model Name | Back-UPS Series |

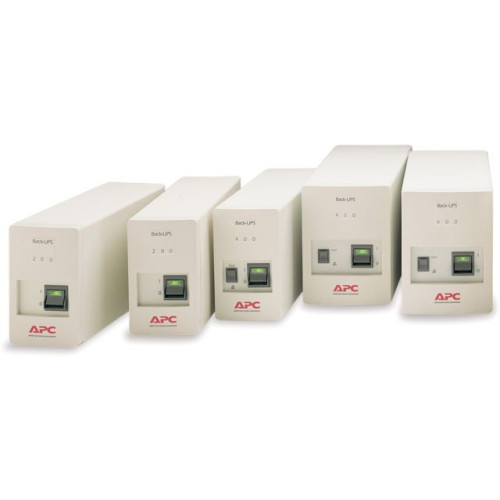

APC Back-UPS Series Specs
Technical Information
- Receptacles:
- 4 x NEMA 5-20R
- 2 x NEMA L6-20R
- Plug/Connector Type:
- Hard Wire 3-wire PH + PH + G
- NEMA L6-30P
- Dataline Protection: RJ-45 10Base-T
General Information
- Product Type: Dual Conversion Online UPS
- Product Series: RM
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

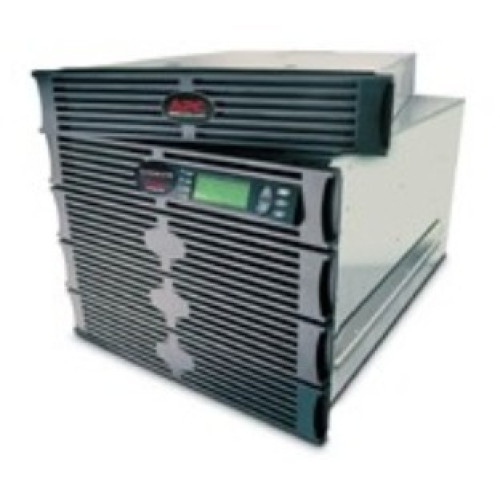

- Product Name: Symmetra RM 4kVA Scalable to 6kVA UPS
- Product Line: Symmetra
Physical Characteristics
- Height: 18"
- Width: 19"
- Depth: 29"
- Form Factor: 10U Rack-mountable
- Weight (Approximate): 324 lb
- Color: Black
- Power Cord/Cable: 6 ft
Interfaces/Ports
- Modular Slots: 1 x SmartSlot
Other
- Package Contents:
- Symmetra RM 4kVA Scalable to 6kVA UPS
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- User Manual
- Symmetra RM 4kVA Scalable to 6kVA UPS
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- User Manual
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- Additional Information:
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Battery modules connected in parallel
- Cold-start capable
- Disconnected battery notification
- Field-replaceable power distribution panel
- Frequency and voltage regulation
- Generator Compatible
- InfraStruXure Manager Compatible
- Input Power Factor Correction
- Manageable external batteries
- Plug-and-Play external batteries
- Power conditioning
- Power Modules connected in parallel
- Predictive failure notification
- Programmable Frequency
- Redundant Intelligence Modules
Power Description
- Input Voltage Range:
- 208 V AC Nominal
- 155 V AC to 276 V AC Mains Operation
- Load Capacity: 4 kVA/2.80 kW
- Input Voltage: 110 V AC
- Output Voltage:
- 120 V AC Nominal
- 208 V AC Nominal
- 240 V AC Nominal
- Frequency:
- 60 Hz Input
- 57 to 63 Hz Output
- Waveform Type: Sine Wave
Environmental Conditions
- Altitude:
- 0 ft to 10000 ft Operating
- 0 ft to 50000 ft Storage
- Humidity:
- 0 to 95% Relative Humidity Operating
- 0 to 95% Relative Humidity Storage
- Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 5°F (-15°C) to 113°F (45°C) Storage
- Thermal Dissipation: 1686 BTU/h
Management
- Network Management: SNMP Manageable
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
- Bypass Switch: Automatic & Manual
- Emergency Power OFF: Yes
- Overload Protection: Resettable circuit breakers
Battery Information
- Batteries: Spill-proof, Maintenance-free Sealed Lead Acid User Replaceable Hot-swappable
- Backup/Run Time:
- 0.20 Hour 2.80 kW Full Load
- 0.48 Hour 1.40 kW Half Load
Warranty
- Limited Warranty: 2 Year
- Parts Warranty/Labor: 2 Year
Controls/Indicators
- Control Panel: Multi-function LCD status and control console
Scalability
- Power Range: 4 kVA to 6 kVA / 2.80 kW to 4.20 kW
