Additional Information
| Manufacturer | APC |
|---|---|
| Model Name | Parts |
Technical Information
- Receptacles:
- 12 x NEMA 5-20R
- 2 x NEMA L6-20R
- Plug/Connector Type:
- Hard Wire 3-wire
- NEMA L6-30P
- Cord Length: 6 ft
- Bypass Switch: Automatic & Manual
- Emergency Power OFF: Yes
General Information
- Product Type: Dual Conversion Online UPS
- Brand Name: APC
- Manufacturer: American Power Conversion Corp

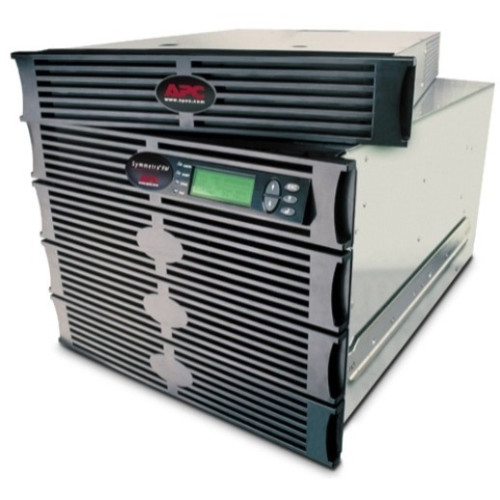

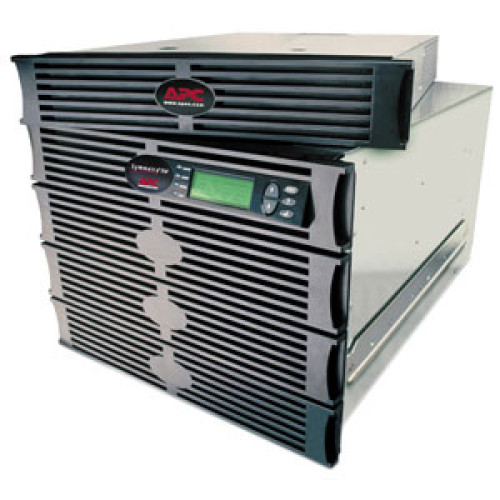

- Product Name: Symmetra RM 6kVA UPS
- Product Line: Symmetra
Physical Characteristics
- Height: 18"
- Width: 19"
- Depth: 29"
- Rack Height: 10U
- Weight (Approximate): 389 lb
- Color: Black
Interfaces/Ports
- Network (RJ-45): Yes
- Serial Port: Yes
- Total Number of Expansion Slots: 1
Other
- Package Contents:
- Symmetra RM 6kVA UPS
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- User Manual
- Symmetra RM 6kVA UPS
- CD with software
- Rack Mounting Brackets
- Rack Mounting support rails
- User Manual
- Certifications & Standards:
- CSA
- FCC Part 15 Class A
- UL 1778
- Additional Information:
- Automatic restart of loads after UPS shutdown
- Cold-start capable
- Configurable for N+1 internal redundancy
- Field-replaceable power distribution panel
- Generator Compatible
- Hot-swappable intelligence modules
- Hot-swappable power modules
- InfraStruXure Manager Compatible
- Plug-and-Play external batteries
- Programmable Frequency
- Scalable Power Capacity
- User-replaceable intelligence modules
- User-replaceable power modules
Management
- Network Management: SNMP Manageable
- Battery Management: Intelligent Battery Management
- Alarm:
- On Battery
- Low Battery
- Configurable Delay
Power Description
- Load Capacity (VA): 6000 VA
- Load Capacity (Watt): 4200 W
- Input Voltage: 220 V AC
- Output Voltage: 240 V AC
- Waveform Type: Sine Wave
Battery Information
- Backup/Run Time (Half Load): 29.10 Minute
- Backup/Run Time (Full Load): 12.30 Minute
- Battery Characteristics: Spill-proof, Maintenance-free
- Battery Chemistry: Sealed Lead Acid
- Hot Swappable: Yes
Environmental Conditions
- Temperature: 113°F (45°C)
- Thermal Dissipation: 2529 BTU/h
Warranty
- Limited Warranty: 2 Year
