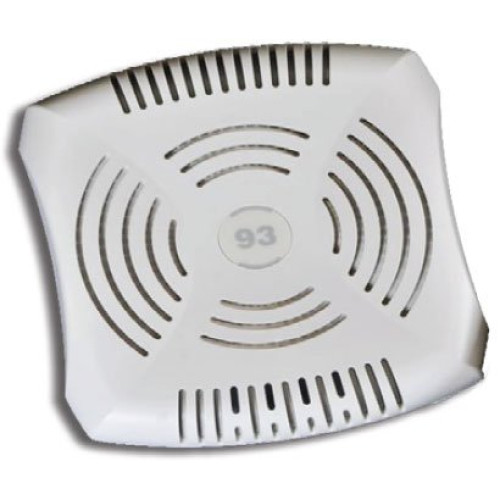

Aruba AP-93 Access Point
Part #: AP-93 | SKU: ARU90240

The Aruba AP-93 works with Aruba's line of centralized mobility controllers to deliver secure, high-speed network services that move users to a wireless-where-possible, wired-where-necessary network access model. The network can then be rightsized by eliminating unused Ethernet switch ports and thereby reducing operating costs. The AP-93's dual-band 2.4GHz/5 GHz 802.11n radio with internal antennas enables the use of wireless as a primary connection with speed and reliability comparable to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgment and MIMO radios.

Aruba AP-93 Access Point

Part Details: AP-93, Entry-Level Indoor Access Point (802.11a/b/gn)

Additional Information

Manufacturer Aruba
Model Name AP-93
Wireless Type Wi-Fi 4: 802.11n, Wi-Fi

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 2.15 GHz
  • Antenna Gain:
    • 2.5 dBi
    • 5.8 dBi
  • Antenna Type: Omnidirectional Antenna
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Features: MIMO Technology

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Aruba Networks
  • Manufacturer: Aruba Networks, Inc
  • Product Model: AP-93
  • Product Name: AP-93 Access Point

Physical Characteristics

  • Height: 1.4"
  • Width: 5.1"
  • Depth: 4.7"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 9 oz

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Certifications & Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • Regulatory:
    • FCC/Industry of Canada
    • R&TTE Directive - 1995/5/EC
    • EN 300 328
    • EN 301 893
    • CB Scheme Safety, cTUVus
    • Korea KCC
    • Mexico NOM/COFETEL
    • UL2043 Compliant
    • CE Marked
    • Low Voltage Directive - 72/23/EEC
    • EN 301 489
    • UL/IEC/EN 60950
    • Japan MIC/VCCI
    • Brazil ANATEL
    • China SRRC/CCC

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Warranty

  • Limited Warranty: Lifetime
Extended Details

Recommended Accessories for Model: Aruba AP-93 Access Point

  • Aruba Antennas Wireless Antenna
    Part #: AP-ANT-93 | SKU: 89194

    Aruba AP-ANT-93 MIMO Antenna - Range - SHF5 GHz - 14 dBi - Wireless Data Network, OutdoorPole/Wall - Directional
  • Aruba AP-92 & AP-93 Products
    Part #: 90-MNT-C2 | SKU: 210048

    AP-92 & AP-93 Accessories, AP-90 Series Ceiling Rail Mount Kit V2
