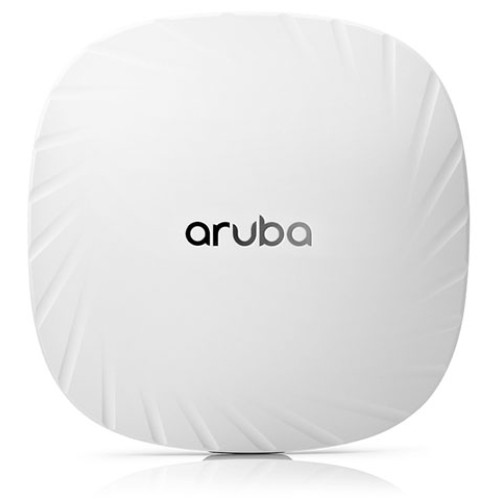

HPE Aruba 500 Series Wireless Access Points
Part #: R2H39A | SKU: HPE767763

This entry-level Wi-Fi 6 access point combines high performance and simplicity in a compact design ideal for small offices, classrooms and retail spaces. Featuring dual 2×2:2 radios on 5 GHz and 2.4 GHz, it delivers up to 1.77 Gbps aggregate throughput to support video conferencing, cloud applications and BYOD traffic. Advanced OFDMA and MU-MIMO technologies optimize airtime for multiple clients, while ClientMatch and AirMatch ensure devices roam seamlessly and RF is automatically tuned. Two Smart Rate 1 GbE ports provide flexible PoE power or upstream uplink options, and a USB 2.0 host port allows connection of edge services such as analytics or security appliances. Security is hardened with WPA3, Enhanced Open and MACsec.

Key Features

• Dual-radio 802.11ax (Wi-Fi 6) 2×2:2 MIMO
• 1.77 Gbps combined peak data rate (5 GHz 1.2 Gbps + 2.4 GHz 574 Mbps)
• 2×1 GbE Smart Rate ports with PoE-PD and PoE-PSE
• USB 2.0 host port for on-premise services
• OFDMA and MU-MIMO for high client density
• WPA3, Enhanced Open and MACsec security
• ClientMatch and AirMatch for automated RF and roaming

Specifications

• Clients Supported: up to 256 per radio; 16 BSSIDs per radio
• Power: PoE (802.3af/at) or 12 V DC
• Max Power Draw: 12 W (DC); 15.4 W (PoE)
• Operating Temp: 0 °C – 50 °C; Humidity: 5 %–93 % non-condensing
• Dimensions: 160 × 161 × 37 mm; Weight: 500 g
