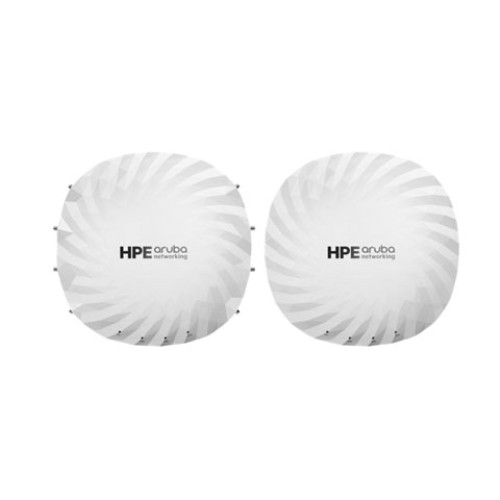

HPE Aruba 750 Series Wireless Access Points HPE Aruba 750 Series Wireless Access Points
new

HPE Aruba 750 Series Wireless Access Points
Part #: S1G85A | SKU: HPE766837

Flagship Wi-Fi 7 access points delivering ultra-high performance, capacity, and resilience for the most demanding users and applications. Tri-band radios across 2.4 GHz, 5 GHz, and 6 GHz deliver up to 18.7 Gbps aggregate throughput, with optional dual-6 GHz mode boosting capacity to 28.8 Gbps. Unique tri-band filtering and dual 10 GbE ports eliminate coverage gaps and provide hitless failover for data and power. Integrated IoT radios, GNSS receiver, and barometric sensor enable precise indoor location services, while AI-powered management and automation simplify operations and optimize RF performance.

Key Features

  • 802.11be Wi-Fi 7 with multilink operation (MLO) and 4K QAM
  • Tri-band 4×4 MIMO (2.4 GHz, 5 GHz, 6 GHz) for up to 18.7 Gbps
  • Optional dual-6 GHz mode for 28.8 Gbps total data rate
  • Patented filtering for seamless 5 GHz/6 GHz co-existence
  • Dual 10 GbE Smart Rate ports with MACsec and power failover
  • Built-in Bluetooth 5.4 and IEEE 802.15.4/Zigbee radios
  • GNSS receiver and barometric sensor for indoor mapping
  • AI-driven ClientMatch & AirMatch RF optimization
  • Zero-touch provisioning and cloud-native management

Technical Specifications

  • Radio Bands: 2.4 GHz / 5 GHz / 6 GHz (tri-band concurrent)
  • Peak Throughput: 18.7 Gbps (tri-band), 28.8 Gbps (dual-6 GHz mode)
  • MIMO Streams: 4×4 per band (up to 12 spatial streams)
  • Ethernet Ports: 2 × 10 GbE Smart Rate (PoE-PD, 802.3af/at/bt)
  • IoT Radios: Bluetooth 5.4 & IEEE 802.15.4/Zigbee
  • Location Sensors: GNSS receiver & barometric sensor
  • Security: WPA3, Enhanced Open, MACsec, TPM
  • Management: Cloud-native OS-10 & Central (AIOps, ML insights)
  • Power Options: 12 V DC or PoE (802.3af/at/bt class 3–6)
  • Operating Temperature: 0 °C to 50 °C, 5–95% RH non-condensing
  • Dimensions: 260 × 260 × 57 mm
  • Weight: 1.53 kg (without bracket)
  • Certifications: Wi-Fi Alliance, CE, FCC/ISED, UL2043, IEC 62368-1

HPE Aruba 750 Series Wireless Access Points

Part Details: Wireless Access Points - HPE Aruba 750 Series - AP-755 (US) Tri-radio 4x4 Wi-Fi7 Internal Antennas Campus Access Point
Need a different version of the HPE Aruba 750 Series Wireless Access Points? View all 20 configurations
MSRP: $2,595.00 Price: $2,341.35
In Stock

Additional Information

Antenna Internal
Environment Indoor
Manufacturer HPE Aruba
Model Name 750 Series

Recommended Accessories for Model: HPE Aruba 750 Series Wireless Access Points

  • HPE Aruba S1F80A Antenna
    Part #: S1F80A | SKU: HPE766854

    Antennas - HPE Aruba - AP-ANT-312 Direct-Mount RP-SMA Tri-band 1x1 Low-Profile Omni Dipole Antenna
    MSRP: $33.00 Price: $32.93
    In Stock

  • HPE Aruba JW124A Cables, Connectors, and Adapters
    Part #: JW124A | SKU: HPE766862

    Cables - Connectors - and Adapters - HPE Aruba - PC-AC-NA AC Power Cord (North America) 125V/10A 1.8 m C13 to NEMA 5-15P
    Price: $9.59
    In Stock

  • HPE Aruba 750 Series Mounting Hardware and Stands
    Part #: S4K79A | SKU: HPE766840

    Mounting Hardware and Stands - HPE Aruba 750 Series - AP-MNT-U Campus Access Point Type U Universal Mount Bracket Kit
    MSRP: $65.00 Price: $58.65
    In Stock

  • HPE Aruba 750 Series Mounting Hardware and Stands
    Part #: S0J40A | SKU: HPE766841

    Mounting Hardware and Stands - HPE Aruba 750 Series - AP-MNT-MP10-U Campus AP 10-Pack Universal Mount Bracket Kit
    MSRP: $545.00 Price: $491.73
    In Stock

  • HPE Aruba 750 Series Mounting Hardware and Stands
    Part #: R3J15A | SKU: HPE766842

    Mounting Hardware and Stands - HPE Aruba 750 Series - AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit
    MSRP: $35.00 Price: $34.32
    In Stock
