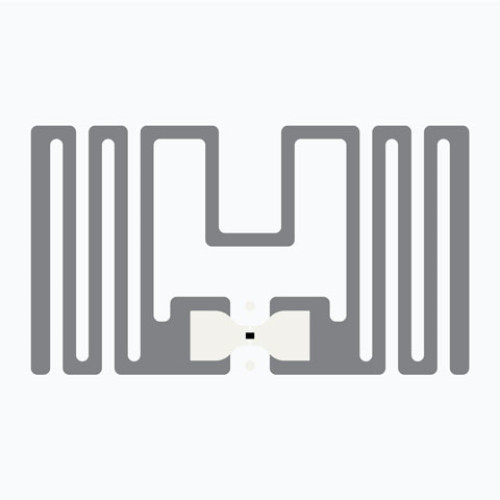

AD-192 M730 RFID Inlay/Tag

The AD-192 M730 is a top-tier RFID inlay and tag crafted to function within the UHF frequency range of 860 – 960 MHz. It incorporates the Impinj M730 chip, celebrated for its autotune feature that guarantees peak performance in fluctuating conditions. This renders the AD-192 M730 exceptionally suited for tagging small items, particularly in industries such as fashion, medical, and beauty and personal care.

Main Features and Benefits

• Enhanced Autotune Chip Performance: Featuring the Impinj M730 chip, it guarantees optimal operation across varying conditions.
• Specialized Small Antenna Size: With dimensions of 22 x 12.5 mm (0.9 x 0.5 inches), it is ideal for tagging small items.
• Broad Application Spectrum: Especially effective for items in fashion, healthcare, and beauty industries.
• High Compatibility Standards: Complies with ISO 18000-63 and EPC Class 1 Gen 2, ensuring global usability.
• Ethical Manufacturing Practices: Adheres to RoHS and REACH standards, emphasizing safety and environmental considerations.

Specifications

• Technical Specifications:
• Dimensions: 22 x 12.5 mm (0.87 x 0.49 inches)
• Target Market: Supply Chain, Fashion, Apparel & Accessories, Automotive & Parts, Health & Beauty
• Frequency Range: 860 - 960 MHz
• Chip: Impinj M730
• Standard: ISO18000-63, EPC C1G2, ISO29167-10-1
• Delivery Format: Wet, Dry, Label
• Orientation Sensitivity: Yes
• Product Family: AD-192
• Operating Temperature: -40ºC to +85ºC
• Properties: Standard Inlay
• Global Trade Item Number (GTIN): 00625868673457
• Features: IPV, Autotune, DuraRead, Wide Frequency Range
