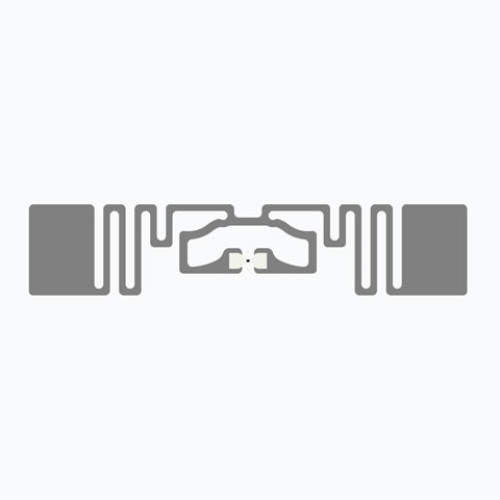

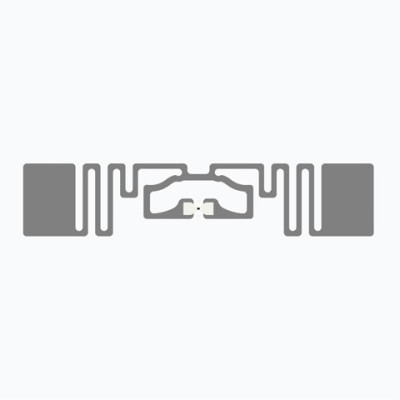

Avery-Dennison AD-239 M730 RFID Tag

Avery Dennison's AD-239 M730 inlays offer top-tier performance for various RFID tagging needs. Equipped with the Impinj M730 chip, these inlays are compact, measuring 70 x 14.5 mm, making them perfect for use in sectors like supply chain management, inventory, logistics, apparel, and home goods.Notable features of the AD-239 M730 include 128 bits of EPC memory and a 96-bit unique factory-locked TID number. The TID features a 48-bit unique serial number, ensuring dependable identification and security. These inlays are crafted to meet the highest industry benchmarks, with Avery Dennison receiving full ARC certification from Auburn University's RFID Lab for quality assurance.Functioning within the UHF frequency range of 860 - 960 MHz, the AD-239 M730 complies with ISO 18000-63 and EPC Class 1 Gen 2 global standards. The inlays incorporate Strap Attach technology, offering robustness and dependability across diverse industrial settings.

Additional Specifications

• Antenna size: 70 x 14.5 mm (2.76 x 0.57 in)
• Available formats: Dry inlay, Wet inlay, and Label
• Inlay base material: 40# Paper
• Total thickness varies from 11 to 18 mils, depending on the format
• Standard spacing: 38.1 mm (1.5 in)
• Web width: 82.5 mm (3.25 in)
• Core diameter: 76.2 mm (3 in)
