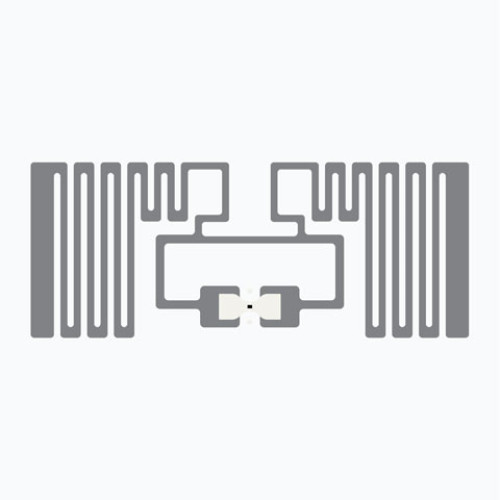

Avery-Dennison AD-325 M730 RFID Tag

The AD-325 M730 is an exceptional RFID inlay engineered for diverse applications, particularly excelling in fields like supply chain optimization, inventory management, logistics, apparel tracking, and healthcare solutions. Functioning within the UHF spectrum of 860 - 960 MHz, the AD-325 M730 is powered by the state-of-the-art Impinj M730 chip, ensuring superior read distances and adaptability across different materials.Key attributes of the AD-325 M730 include its antenna dimensions of 42.5 x 17 mm (1.67 x 0.67 inches) and adherence to global standards ISO 18000-63 and EPC Class 1 Gen 2. This inlay is fine-tuned for peak performance in the FCC frequency range (902-928 MHz) and is equipped with 128-bit EPC memory, a unique 96-bit factory-locked TID, and a 48-bit unique serial number embedded in the TID.The AD-325 M730 boasts a variety of advanced features such as AutoTune™, Short-Range Mode, TagFocus™, FastID™, Access, BlockWrite, Lock, Untraceable, and Protected Mode, making it ideal for a wide array of RFID tagging needs. Available in dry inlay, wet inlay, and paper label formats, its die-cut dimensions measure 44.5 x 19 mm (1.752 x 0.748 inches).Built to meet stringent industry quality benchmarks, the AD-325 M730 has earned full ARC certification for quality by the RFID Lab at Auburn University. It complies with the RoHS EU Directive 2011/65/EU and Directive (EU) 2015/863, as well as the REACH Regulation (EC) No. 1907/2006. The inlay operates within a temperature range of -40 °C to 85 °C (-40 °F to 185 °F) and is designed for use on non-metallic surfaces.For additional details or to connect with Avery Dennison, visit rfid.averydennison.com/contact or call +1-678-617-2359.

Features and Benefits

• Recommended for metadata, returnable transport items (RTIs), laundry applications, and various other tagging use cases.
• Part of Avery Dennison’s comprehensive portfolio of high-quality RFID solutions for improved inventory visibility, efficiency, and accuracy.
• Built with the innovative Impinj M730 chip, ensuring superior performance and reliability in diverse applications.
• AutoTune™ technology for optimized read range and performance across various materials and supply chain environments.
• Short-Range Mode for enhanced read performance in specific high-dielectric tagging scenarios.
• 128 bits of EPC memory, a unique 96-bit factory-locked TID, and a 48-bit unique serial number embedded in the TID for improved traceability and security.
• Dual frequency operation capability, supporting both ETSI (865-868 MHz) and FCC (902-928 MHz) frequency ranges for global applicability.
• Compliant with RoHS and REACH regulations, ensuring environmental sustainability and safety.
