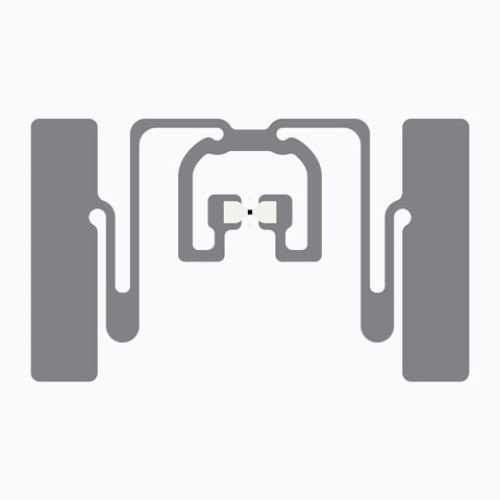

Avery-Dennison AD-386 M750 RFID Tag

Cutting-edge apparel tag with superior read sensitivity
The AD-386 M750 represents the advanced evolution of Avery Dennison's well-regarded 50 x 30mm fashion tag, incorporating the Impinj M750 chip.
With the M750 IC, users benefit from an increase of up to 2 dBm in read sensitivity compared to the previous Monza R6 IC version. This results in an enhanced reading range of up to 4 meters on layered denim and up to 6 meters on materials with high dielectric constants such as PMMA.
The AD-386 M750 offers 96-bit EPC and 32-bit user memory. Its RF performance is robust, ensuring consistent functionality across a range of scenarios.
Available in both dry and wet configurations, this product features a 40# paper antenna carrier and a thermal transfer printable paper label.
The inlay conforms to ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management, guaranteeing a dependable and modern product suited for various applications, particularly in retail settings. The product is manufactured to the industry's most stringent quality benchmarks, as evidenced by the RFID Lab at Auburn University's first-ever ARC accreditation awarded to Avery Dennison for overall quality excellence.

Technical Specifications:

• Orientation Sensitivity

• Reading Distance


EPC and User Memory Details:

• 96-bit and 32-bit


TID Memory Details:

• 96-bit / 48-bit unique serial identifier


Product Identification:

• RF601847 / IL-605314


Available Formats:

• Dry inlay

• Wet inlay

• Label / sticker


Die-Cut Dimensions:

• 54 x 34 mm / 2.13 x 1.34 in


Inlay Base Material:

• 40# paper


Material Composition:

• Top Sheet: Thermal transfer printable paper


Inlay Liner Material:

• Siliconized paper


Overall Thickness:

• 11 - 14 mils / 280 - 355 microns


Standard Spacing:

• 50.8 mm / 2 in


Web Width:

• 58.0 mm / 2 in


Core Dimension:

• 76 mm / 3 in


Reel Quantity:

• 7,500 pcs/reel


Temperature Range:

• -40 °C to 85 °C / -40 °F to 185 °F
