Avery Dennison Smartrac Product Data Sheet: AD Bling M730

Introduction

The AD Bling M730 is a top-tier RFID inlay and label crafted for precision in small-scale item tagging. Functioning within the UHF 860 – 960 MHz spectrum, it incorporates the advanced Impinj M730 chip and aligns with ISO 18000-63, EPC Class 1 Gen 2 global standards.

Main Attributes

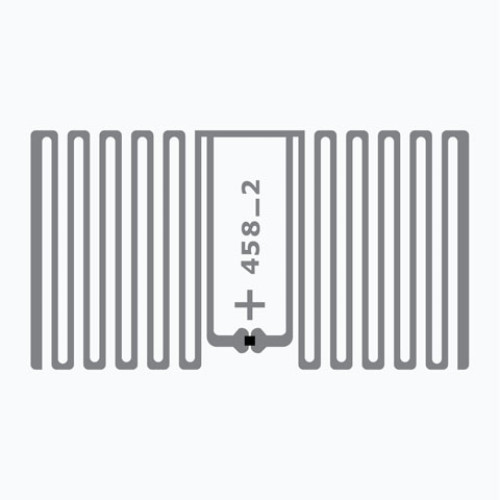

• Antenna Size: 22 x 12.5 mm (0.9 x 0.5 inches), perfect for confined spaces.
• Target Industries: Fashion, Medical, Beauty and Personal Care.
• Use Cases: Ideal for marking items like fashion accessories, eyewear, medical supplies, and beauty products.
• RoHS Standards: Compliant with EU Directive 2011/65/EC and Directive (EU) 2015/863.
• REACH Standards: Adheres to Regulation (EC) No 1907/2006.

Advantages

The AD Bling M730 delivers superior functionality for accessory and beauty product labeling, featuring a compact design that facilitates its integration into small hang-tags or attachment to cosmetic containers. The Impinj M730 chip's autotuning feature guarantees peak performance in dynamic settings. It is available in dry, wet, and label formats and undergoes comprehensive performance testing.

Technical Details

• Orientation Sensitivity: Engineered for maximum read efficiency.
• EPC and User Memory: Contains a 128-bit EPC and no user memory.
• TID Memory: 96-bit with a distinctive 48-bit serial number.
• Format Options: Offered as dry inlay, wet inlay, and label.
• Die-Cut Size: 25 x 15 mm (1 x 0.60 inches).
• Substrate Material: PET.
• Label Surface: Mid-gloss paper for label applications.
• Standard Pitch: 20 mm (0.787 inches).
• Web Width: 28 mm (1 inch).
• Core Dimension: 76 mm (3 inches).
• Reel Quantity: Available in reels of 10,000 or 5,000 pieces, with matching box quantities.
• Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F).

Quality Standards

The AD Bling M730 meets ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management criteria, ensuring a dependable, cutting-edge solution for diverse retail needs.

For further details, visit rfid.averydennison.com or call +1-678-617-2359.
