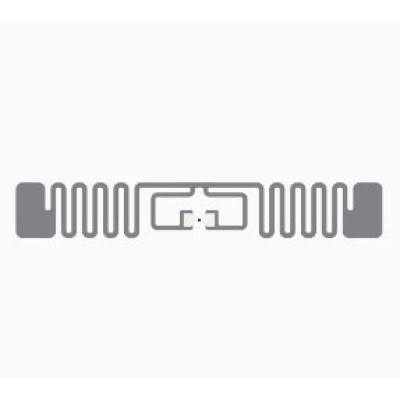

Avery-Dennison AD Burst M850 RFID Tag

The AD Burst M850 from Avery Dennison Smartrac is a top-tier UHF RFID inlay tailored for versatile applications, spanning apparel, retail, and industrial sectors. Equipped with the Impinj M850 IC, this inlay delivers outstanding performance across multiple dielectric environments, making it ideal for various industry needs. With a compact size of 73 x 13.5 mm (2.87 x 0.53 in), it is offered in several formats, including dry inlay, wet inlay, and pressure-sensitive label.Specially crafted for retail apparel scenarios, the AD Burst M850 is adept at tagging items and cases. It includes 96-bit EPC memory, 32-bit user memory, a 96-bit unique factory-locked TID number, and a 48-bit factory-encoded unique serial number within the TID. The advanced readability of the new IC ensures dependable scanning of small tags at high volumes and speeds, facilitating global IoT implementations.Meeting ISO 9001:2015 for Quality Management and ISO 14001:2015 for Environmental Management standards, the AD Burst M850 guarantees a dependable and cutting-edge product. It has achieved full ARC certification from the RFID Lab at Auburn University, underscoring its excellence.

Technical Specifications

• Frequency Range: UHF 860 - 960 MHz
• Integrated Circuit: Impinj M850
• IC Attachment Method: Direct Chip Attach and Strap Attach
• Antenna Size: 70 x 10.5 mm (2.756 x 0.413 in)
• Global Standard: ISO/IEC 18000-63 Type C
• Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)
• RoHS Compliance: EU Directive 2011/65/EU and 2015/863
