Avery-Dennison AD Midas Flagtag M780 RFID Tag

Summary

The AD Midas Flagtag® M780 functions within the UHF spectrum of 860 - 960 MHz and employs direct chip attach technology. Outfitted with the Impinj M780 chip, it is ideal for diverse industrial applications, including sectors like automotive, logistics, and aviation.

Technical Specifications

• Chip Type : Impinj M780
• Memory : 496-bit EPC, 128-bit user memory
• TID Memory : 96-bit including a 48-bit unique serial number

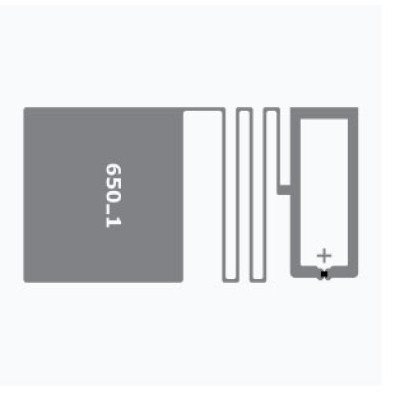

• Product Identifier : 3009027 / IL-604767
• Antenna Size : 34.4 x 18 mm / 1.36 x 0.71 in
• Die-Cut Size : 43 x 21 mm / 1.7 x 0.83 in
• Inlay Material : PET
• Surface Material : White PET
• Global Standard : ISO 18000-63, EPC Class 1 Gen 2
• Roll Size : 33 x 21 mm +/- 1 mm
• Standard Gap : 24 mm / 0.95 in
• Roll Width : 46 mm / 1.81 in
• Core Diameter : 76 mm / 3 in
• Reel Count : 5,000 pcs/reel, 10,000 pcs/box
• Temperature Range : -40 °C to 85 °C / -40 °F to 185 °F

Features and Benefits

Key Features and Advantages The AD Midas Flagtag® M780 is crafted for efficient item-level tagging, especially effective on metallic surfaces. It provides robust performance in less challenging environments and can also be applied to plastic and cardboard. Its smart compact design measures 43 x 21 mm when used as a flat paper tag. The flag section of the tag should extend beyond the metal surface to enhance the antenna's performance by incorporating the metal into its structure.

Application Guidelines

1. Detach the AD Midas Flagtag® M780 from the roll format substrate.
2. Fold the white rectangle along the perforation to cover the transponder.
3. Attach the tag to the metal object with the transponder area exposed, allowing the folded flag to protrude.

Regulatory and Quality Standards

Regulatory Compliance RoHS EU Directive 2011/65/EU and Directive (EU) 2015/863, REACH Regulation (EC) No. 1907/2006

Quality Standards

The AD Midas Flagtag® M780 adheres to ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards, guaranteeing a dependable and cutting-edge product for various applications, particularly in retail settings.

Contact Information

rfid.averydennison.com/contact
Phone: +1-678-617-2359
