Overview
Introducing the AD Miniweb M750 FCC, an exceptional RFID inlay tailored for a broad spectrum of retail, industrial, and supply chain applications worldwide. Designed to operate in the UHF 860 - 960 MHz frequency range, this inlay is powered by the Impinj M750 chip, offering top-notch functionality, even when affixed to complex materials like cardboard and plastic.
Specifications
- Frequency Range: UHF 860 - 960 MHz
- Integrated Chip: Impinj M750
- Antenna Size: 42 x 16 mm / 1.70 x 0.60 in
- Global Standard Compliance: ISO/IEC 18000-63, EPC Gen2 V2
- Industry Applications: Apparel, Automotive, Logistics
- Use Cases: Home Essentials, Inventory Management, Supply Chain Operations
- RoHS Compliance: EU Directive 2011/65/EC and Directive (EU) 2015/863
- REACH Compliance: Regulation (EC) No. 1907/2006
Features and Benefits
The AD Miniweb M750 FCC is engineered for high performance with a compact design, excelling in environments that require minimal space. It performs exceptionally well in close-proximity settings and on materials with low detuning properties. The inlay meets the stringent ARC category K, I, N, and Q standards, ensuring outstanding RF capabilities.
Memory and Compatibility
- EPC Memory: 96-bit
- User Memory: 32-bit
- TID Memory: 96-bit / 48-bit unique serial number
- GS1 UHF Gen2v2 Standard: Fully compatible, with privacy mode for added consumer security.
Delivery Formats
Offered in dry, wet, and paper tag formats, the AD Miniweb M750 FCC is adaptable and can be easily customized for a variety of applications.
Quality Assurance
Crafted to meet the highest industry benchmarks, the AD Miniweb M750 FCC has earned significant ARC accreditation from the RFID Lab at Auburn University, underscoring its quality.
Technical Features
- Orientation Adaptability: Optimized for a wide array of applications
- Extended Read Range: For enhanced functionality
- Die-Cut Dimensions: 45 x 18 mm / 1.80 x 0.70 in
- Substrate Material: PET
- Face Material: Mid-gloss paper
- Standard Pitch: 20 mm / 0.79 in
- Web Width: 48 mm / 1.89 in
- Core Size: 76 mm / 3 in
- Operational Temperature Range: -45 °C to 85 °C / -49 °F to 185 °F
Product Codes
3007541 / IL-603702
3007542 / IL-603703
3007543 / IL-603704
Packaging Options
- Reel Quantity: 10,000 pcs/reel, 20,000 pcs/box
- Alternative Packaging: 5,000 pcs/reel, 10,000 pcs/box
For more details and inquiries, visit rfid.averydennison.com/contact or call +1-678-617-2359. 170 Monarch Lane, Miamisburg, OH 45342, USA
Avery-Dennison AD Miniweb M750 FCC Specs
Refine Your Options
-

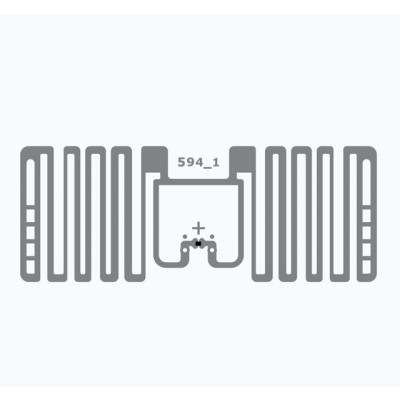

Avery-Dennison AD Miniweb M750 FCC RFID Tag
Part #: 3007556 | SKU: AVE759154RFID Tag - Avery-Dennison AD Miniweb M750 FCC - RFID Paper Label - 1.8 x 0.7 - Impinj Monza M750 Chip - AD Miniweb inlay - UHF Frequency - Ideal for Home Essentials - Inventory and Logistics - Supply Chain Management.
