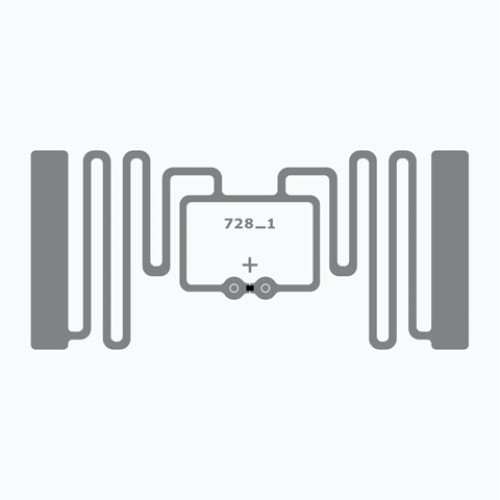

Avery-Dennison AD Sonic M830 RFID Tag

Discover the AD Sonic M830 inlays and tags by Avery Dennison, crafted for superior functionality in both apparel and general retail sectors. These inlays excel in supply chain, inventory, and logistics applications. The compact antenna, measuring 44 x 20 mm (1.732 x 0.787 in), facilitates seamless integration into various end-use scenarios. The AD Sonic M830 is offered in dry, wet, and pressure-sensitive label options.Harnessing the power of the Impinj M830 IC, the AD Sonic M830 provides 128-bit EPC memory with a factory-locked 96-bit unique TID number. A 48-bit unique serial number is also factory-encoded into the TID. The ICs enhanced readability ensures efficient reading of small tags, even at high volumes and speeds, making it ideal for global IoT applications.Meeting ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards, the AD Sonic M830 delivers a dependable and cutting-edge solution tailored for diverse retail applications. Avery Dennisons RFID Lab at Auburn University has awarded the AD Sonic M830 with full ARC accreditation for quality assurance.The AD Sonic M830 operates within the UHF 860 - 960 MHz frequency spectrum and utilizes Direct Chip Attach technology. It complies with the ISO/IEC 18000-63 Type C international standard and is RoHS compliant per EU Directive 2011/65/EU and 2015/863.Available in dry inlay, wet inlay, and label formats, the AD Sonic M830 features die-cut dimensions of 46 x 22 mm (1.81 x 0.87 in) for wet inlays and labels. The substrate is PET, while the label face sheet is mid-gloss paper. Thickness ranges from 7.05 mils (179 microns) for dry inlays to 10.23 mils (260 microns) for labels.Engineered for non-metal environments, the AD Sonic M830 can operate in temperatures from -40 °C to 85 °C (-40 °F to 185 °F). It comes with a standard pitch of 24 mm (0.945 in) and a web width of 52 mm (2.047 in), available in reels and boxes in different quantities.For further details and questions, visit rfid.averydennison.com or reach out to Avery Dennison at +1-678-617-2359.

Key Features and Benefits

• Impinj M830 IC: Enhanced performance, reliability, and readability for small form factor tags.
• Multiple Form Factors: Available in dry inlay, wet inlay, and label formats for versatile application use.
• Superior Sensitivity and Read Range: Optimized for high-speed applications, ensuring fast and accurate inventory management.
• Sustainability Focus: Part of Avery Dennison’s CleanFlake™ technology for improved recyclability, reducing landfill waste and fostering a circular economy.
• UHF Range: Operates at the UHF 860 - 960 MHz frequency, suitable for global applications.
• Superior Read Range: Engineered for high-performance tagging, enhancing supply chain and inventory management efficiency.
