Avery-Dennison AD Squarewave M830 RFID Tag

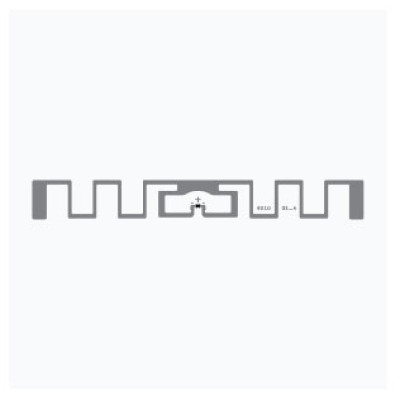

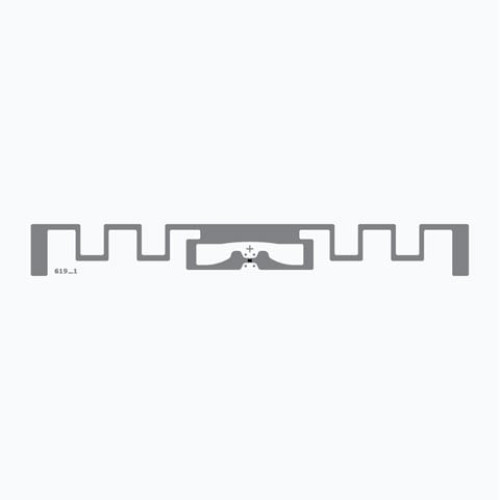

Introducing the AD Squarewave M830, a top-tier RFID inlay tailored for industrial and supply chain environments. Functioning within the UHF spectrum of 860 - 960 MHz, this inlay is powered by the Impinj M830 chip, delivering consistent performance on a variety of materials, including those with high dielectric constants such as cardboard and plastic. It adheres to ISO/IEC 18000-63 and EPC Gen2 V2 standards, ensuring its applicability worldwide.The antenna of the AD Squarewave M830 measures 93 x 11 mm (3.66 x 0.43 inches), and its compact design, with an overall length of 97 mm (3.82 inches), makes it easy to incorporate into diverse supply chain labeling systems. Available in several formats like dry inlay, wet inlay+, and as a label, it features die-cut dimensions of 97 x 15 mm (3.82 x 0.59 inches).Equipped with 128-bit EPC memory and a 96-bit unique factory-locked TID number, including a 48-bit unique serial component, the AD Squarewave M830 enhances the readability of small tags at high volumes, facilitating efficient global IoT solutions.The AD Squarewave M830 is crafted to meet stringent quality benchmarks and has achieved complete ARC accreditation from Auburn University\'s RFID Lab, attesting to its exceptional quality. Additionally, it complies with RoHS (EU Directive 2011/65/EC and Directive (EU) 2015/863) and REACH (Regulation (EC) No 1907/2006) standards, underscoring its commitment to environmental sustainability.Key specifications include a 20 mm (0.787 inches) standard pitch and a 100 mm (3.937 inches) web width. The inlay substrate is PET, available with either a clear PET face sheet or an opaque matt paper option. Thickness varies by format, ranging from 63 µm to 173 µm. The AD Squarewave M830 operates effectively in temperatures from -40 °C to 85 °C (-40 °F to 185 °F), making it adaptable to diverse conditions.For further details, interested parties can reach out to Avery Dennison via their website or by calling +1-678-617-2359. The AD Squarewave M830 is an excellent choice for supply chain management, inventory, logistics, and home essentials, offering a dependable and efficient RFID tagging solution.

Key Features and Benefits

• High-Performing RFID Tag: Ideal for various applications such as apparel, inventory, logistics, and asset tracking.
• Enhanced Readility: With the Impinj M830 chip, it allows for improved readability of small RFID tags at high speeds and volumes.
• Versatile Inlay Formats: Available as a dry inlay, wet inlay+, and label, providing options for different user needs.
• Environmental Compliance: Meets RoHS and REACH standards, reflecting a commitment to sustainability and safety.
• Temperature Resistant: Functional in a range of temperatures, ensuring reliability across diverse conditions.
