AD Stealth M830 Product Information Sheet
Introduction:

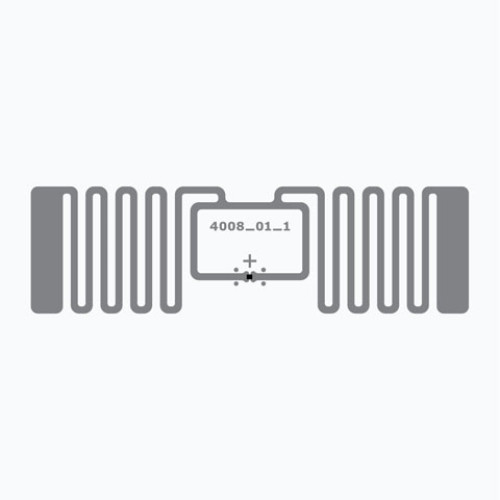

Discover the AD Stealth M830, an advanced RFID inlay crafted for superior functionality across multiple sectors. It operates within the UHF frequency range of 860 – 960 MHz and incorporates the Impinj M830 IC, seamlessly integrated using Direct Chip Attach. With antenna measurements of a sleek 50 x 14.5 mm (1.97 x 0.57 in), it is perfect for tagging smaller items.
Technical Details:
- Frequency Range: UHF 860 – 960 MHz
- Integrated Chip: Impinj M830
- Chip Attachment Method: Direct Chip Attach
- Antenna Size: 50 x 14.5 mm / 1.97 x 0.57 in
- Compliance Standards: ISO 18000-63, EPC Class 1 Gen 2
- Key Industry Focus: Apparel
- Additional Industry Uses: Retail, Beauty & Personal Care, Automotive, Logistics
- RoHS Directive Compliance: EU Directive 2011/65/EC and Directive (EU) 2015/863
- REACH Compliance: Regulation (EC) No 1907/2006
Advantages and Benefits:
The AD Stealth M830 is designed to deliver outstanding reading performance, particularly benefiting the apparel and retail industries. Its streamlined structure makes it an excellent choice for beauty and personal care product tagging. This adaptable inlay performs efficiently with various materials and products, making it ideal for logistics and automotive sectors as well.
With a compact die-cut dimension of 53 x 17.5 mm, the AD Stealth M830 supports diverse media options such as pressure-sensitive labels, hangtags, and price tickets. It features 128-bit EPC memory and a 96-bit unique factory-locked TID number, along with a 48-bit unique serial number embedded in the TID.
Quality Assurance:
AD Stealth M830 inlays meet ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management standards, guaranteeing a top-tier product. These inlays are produced up to the highest industry standards, as validated by the RFID Lab at Auburn University, which granted Avery Dennison its inaugural ARC quality accreditation.
Avery-Dennison AD Stealth M830 Specs
Refine Your Options
-

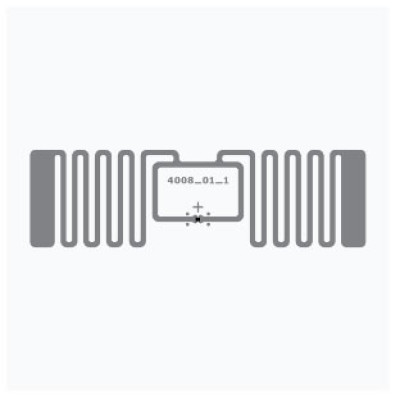

Avery-Dennison AD Stealth M830 RFID Tag
Part #: IL-610623 | SKU: AVE759169RFID Tag - Avery-Dennison AD Stealth M830 - RFID Paper Label - 2.08 x 0.68 - Impinj Monza M830 Chip - AD Stealth inlay - UHF Frequency - Ideal for Apparel.
