General Information
- Product Type: SFP (mini-GBIC)
- Brand Name: TRENDnet
- Manufacturer: TRENDnet
- Product Model: TEG-MGBSX

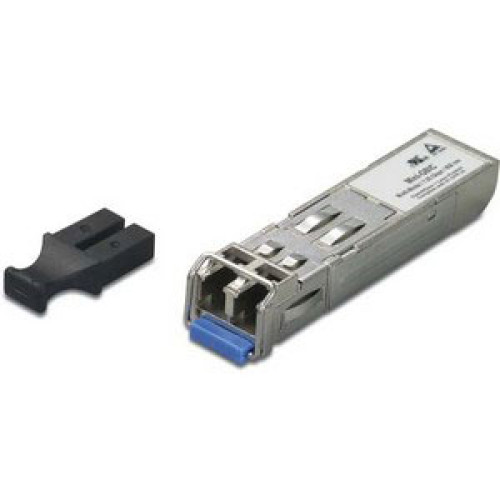

- Product Name: TEG-MGBSX Multi-mode Mini GBIC Module
Technical Information
- Application/Usage: Data Networking
Physical Characteristics
- Form Factor: Hot-pluggable
Interfaces/Ports
- Interfaces/Ports: 1 x 1000Base-SX
- Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX
Other
- Compatibility:
- This Module is for industry standard SFP slot
- This Module is for industry standard SFP slot
- Certifications & Standards:
- IEEE 802.3z
- Class 1 Laser product complies with EN 60825-1
- Additional Information:
- Wavelength: 850nm
- Die Cast Metal Housing for low EMI
- Pout (dBm): -9.5 ~ 0.0
- Sensitivity: -18
- Power: 8.5
- Application:
- Switch to Switch Interface
- High Speed I/O for File Server
- Channel Extender, Data Storage
Media & Performance
- Data Transfer Rate: Up to 2.13 Gbps Gigabit Ethernet Bi-directional
- Connectivity Media: Multi-mode Optical Fiber 1000Base-SX
- Distance Supported: 1804.46 ft Multi-mode Optical Fiber
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 3.30 V Device
