General Information

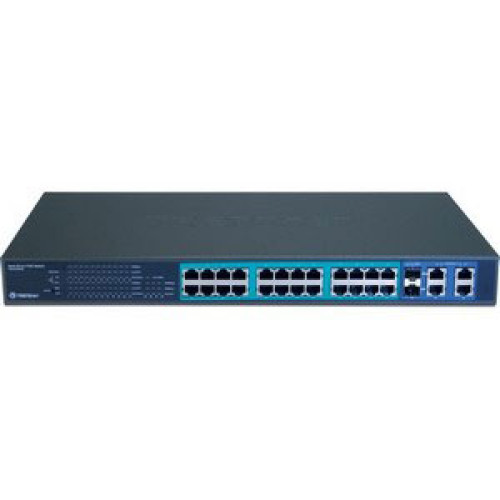

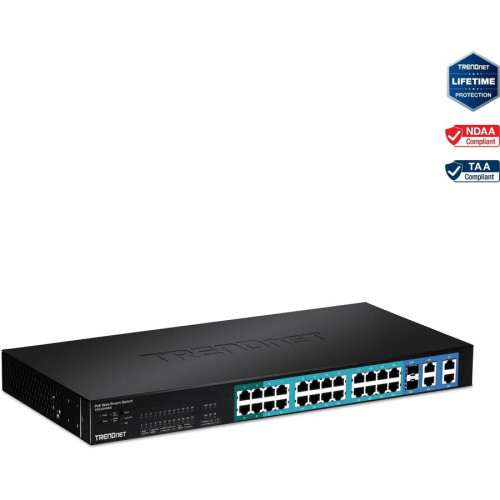

- Product Type: Ethernet Switch
- Brand Name: TRENDnet
- Manufacturer: TRENDnet
- Product Model: TPE-224WS
- Product Name: 24-Port 10/100Mbps Web Smart PoE Switch
- Product Line: WebSmart
Physical Characteristics
- Height: 1.7"
- Width: 17.3"
- Depth: 12"
- Weight (Approximate): 9.77 lb
Interfaces/Ports
- Number of Network (RJ-45) Ports: 28
- Total Number of Network Ports: 28
- Port/Expansion Slot Details:
- 24 x Fast Ethernet Network
- 4 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Expansion Slot
Other
- Package Contents:
- TPE-224WS Gigabit Web Smart PoE Switch
- Multi-Language User's Guide
- Web-Smart Utility CD-ROM
- Power Supply
- Rack Mount Kit
- TPE-224WS Gigabit Web Smart PoE Switch
- Multi-Language User's Guide
- Web-Smart Utility CD-ROM
- Power Supply
- Rack Mount Kit
- Certifications & Standards:
- IEEE 802.3
- IEEE802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af PoE
- Additional Information:
- Full Wire-Speed Non-Blocking Reception and Transmission
- Power over Ethernet:
- 24 x 10/100Mbps PoE Ports
- Up to 15.4 watts per Port
- PD classification Identify
- Manual setting for PoE power limitation
- Supports PoE priority setting
- PoE over current protection
- PoE circuit sorting protection
Media & Performance
- Ethernet Technology: Gigabit Ethernet
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Network Technology:
- 10Base-T
- 10/100/1000Base-T
- 100/1000Base-T
- 1000Base-T
- Twisted Pair Cable Standard: Category 6
Management & Protocols
- Manageable: Yes
- Management:
- QoS
- Trunking
- Port-Based VLAN
- Port Mirroring
- Easy configuration via Web browser
- Proprietary Windows Based Management/Monitoring Utility
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
- Shared SFP Slot: Yes
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
- Power Source: Power Supply
Warranty
- Limited Warranty: 5 Year
Network & Communication
- Layer Supported: 2
