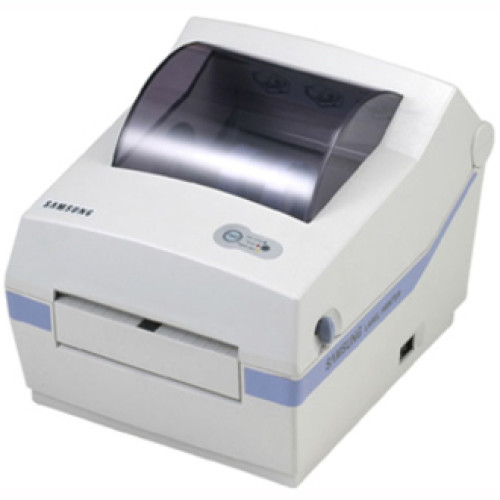

Bixolon SRP-770 Receipt Printer
Part #: SRP-770 | SKU: BIX21297

The Samsung SRP-770 direct thermal label printer provides top quality label printing for any application. With a print speed of 5 inches per second the SRP-770 will keep pace with demand. High print definition ensures excellent read quality, even with the smallest text and the latest barcodes. Add barcodes, text, graphics and variable fields for sell/use by dates etc. Up to 10 counting fields for serial numbering, batch numbering etc.

Bixolon SRP-770 Receipt Printer

Part Details: SRP-770, Direct thermal printing, 4" print width, 5"/sec print speed, 203 dpi, serial, parallel and USB interfaces. Includes US power supply. Cables not included. See accessories.

Need a different version of the Bixolon SRP-770 Receipt Printer? View all 1 configurations

Additional Information

Manufacturer AIDC	Bixolon
Model Name	SRP-770

Bixolon SRP-770 Specs (pdf)

Technical Information

Maximum Mono Print Speed: 5 in/s 5 lps
Maximum Print Resolution: 203 dpi
Maximum Print Width: 4"
Recommended Use: Label Print
Features: Dispenser
Barcode Symbology Supported:
- Code 39
- Code 128
- Interleaved 2 of 5
- Codabar
- Code 93
- UPC-A
- UPC-E
- EAN-8
- EAN-13
- UCC/EAN 128
- Maxi Code
- PDF-417

General Information

Product Type: Direct Thermal/Thermal Transfer Printer
Brand Name: Samsung
Manufacturer: Samsung
Product Model: SRP-770
Product Name: SRP-770 Thermal Label Printer

Physical Characteristics

Height: 6.7"
Width: 7.2"
Depth: 8.7"

Interfaces/Ports

USB: Yes
Serial Port: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 4.10"
Maximum Label Length: 12"
Media Type:
- Die-cut Label
- Fanfold
- Roll Fed
- Linerless
Media Sensor: Reflective Media Sensor
Maximum Roll Diameter: 1.50"

Other

Additional Information:
- Paper Type: KANZAKI, RICOH, FASSON
- Printing Direction: Unidirection with Friction Feed

Memory

Standard Memory: 512 KB
Flash Memory: 1 MB

Power Description

Input Voltage: 24 V DC

Extended Details
