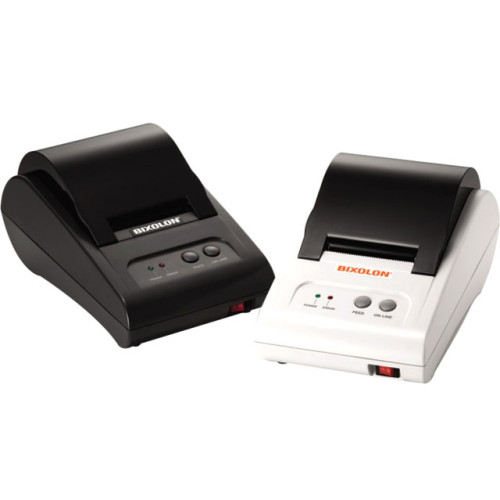

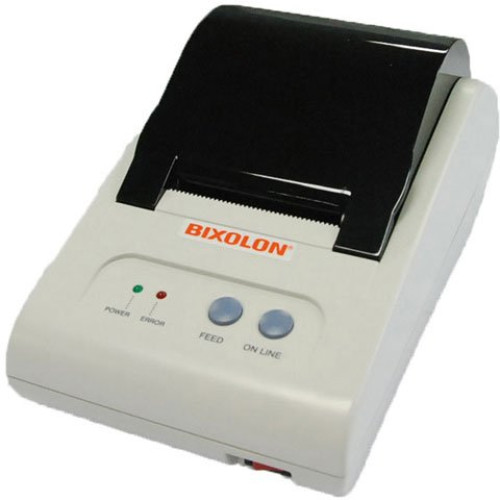

Bixolon STP-103II Receipt Printer
Part #: STP-103II | SKU: BIX142621

This user-friendly design of the STP-103II ia an upgraded version of the STP-103 which incorporates a small footprint and drop-in and-load paper insertion. The STP-103II is equipped with on-board USB 2.0 that can print at a speed of 70mm per second. The Bixolon STP-103II's ability to produce large clear print on 58mm wide paper is found on no other compact printer and it can hold thermal rolls up to 60mm in width while still offering high efficiency in a very limited space in so many of today’s POS environments. The unit may seem small in size, but compared to some larger models its printing quality reaches the same standards. The STP-103II prints crystal clear vouchers and receipts at 203 dpi resolution. It supports a simple software application that downloads your logos directly to the printer.

Bixolon STP-103II Receipt Printer

Part Details: Bixolon STP-103II Direct Thermal Printer - Monochrome - White - Desktop - Receipt Print - USB - 2.76 in/s Mono - 203 dpi - Thermal Paper - 2.28" Label Width

Need a different version of the Bixolon STP-103II Receipt Printer? View all 2 configurations

Additional Information

Manufacturer	Bixolon
Model Name	STP-103II

Bixolon STP-103II Specs (pdf)

Technical Information

Maximum Mono Print Speed: 2.76 in/s
Maximum Print Resolution: 203 dpi
Print Color: Monochrome
Recommended Use: Receipt Print
Features: Tear Bar
Barcode Symbology Supported:
- PDF-417
- QR Code
- EAN-13
- EAN-8
- Code 39
- Code 93
- Code 128
- ITF
- Codabar
- UPC-A
- UPC-E

General Information

Product Type: Direct Thermal Printer
Brand Name: Bixolon
Manufacturer: Bixolon America, Inc
Product Model: STP-103II
Product Name: STP-103II Receipt Printer

Physical Characteristics

Height: 3.5"
Width: 4.6"
Depth: 7.1"
Form Factor: Desktop
Color: White

Interfaces/Ports

USB: Yes
Parallel Port: Yes

Media Types & Handling

Maximum Label Width: 2.28"
Media Type: Thermal Paper
Media Sensor:
- Out Of Paper Sensor
- Media Door Open Sensor
Maximum Roll Diameter: 3.15"

Other

Platform Supported: PC
Package Contents:
- STP-103II Receipt Printer
- Serial Cable
- STP-103II Receipt Printer
- Serial Cable

Fonts & Emulation

Language Emulation: ESC/POS

Power Description

Input Voltage: 24 V DC

Memory

Flash Memory: 256 KB

Extended Details
