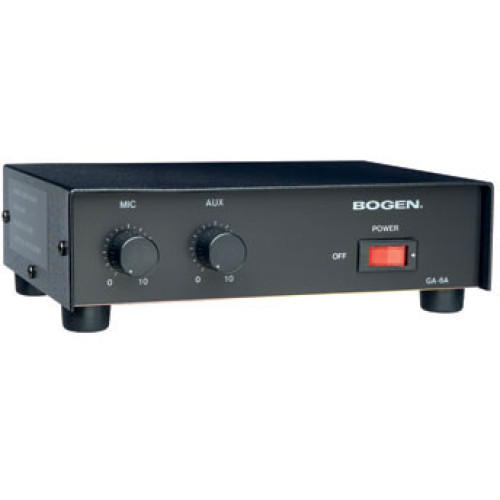

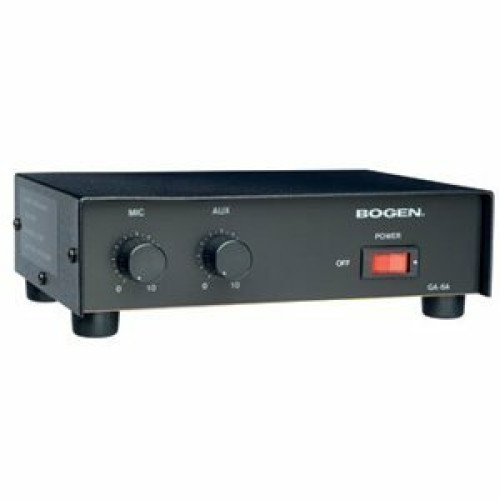

Bogen GA6A Public Address Equipment
Part #: GA6A | SKU: BOG93322

The GA6A Amplifier is a rugged six-watt, dual-input audio amplifier with a wide variety of smaller applications including background music, relaying communication from one room to another, or sound reinforcement. The GA6A Amplifier delivers rated power at not more than 1% total harmonic distortion from 75-15,000 Hz into transformer-coupled or direct low-impedance loads. Inputs for a low-impedance balanced dynamic microphone and an auxiliary audio source (tuner, tape deck, etc.) can be mixed. Individual front-panel controls regulate the level of each input. Connections for 8-ohm and 25V or 70V speaker lines are provided on the rear panel output terminal strip. A 3-position switch is supplied to provide +9 dB boost, -9 dB cut at 10 kHz or flat response.

Bogen GA6A Public Address Equipment

Part Details: Bogen GA6A General Purpose Amplifier - 1% THD - 16 W

Additional Information

Manufacturer Bogen
Model Name GA6A

General Information

Technical Information

  • Total Harmonic Distortion (THD): 1%

Physical Characteristics

  • Height: 2.6"
  • Width: 8.5"
  • Depth: 6"

Other

  • Additional Information:
    • Features:
    • Two individual controls: Lo-Z balanced or unbalanced MIC, AUX
    • Internally adjustable tone control
    • Built-in mixing
    • Features:
    • Two individual controls: Lo-Z balanced or unbalanced MIC, AUX
    • Internally adjustable tone control
    • Built-in mixing

Power Description

  • Frequency: 60 Hz
  • Input Voltage: 120 V AC

Audio

  • RMS Output Power: 6 W
Extended Details
