Bogen SAH Series Public Address Equipment
Part #: SAH15 | SKU: BOG18469

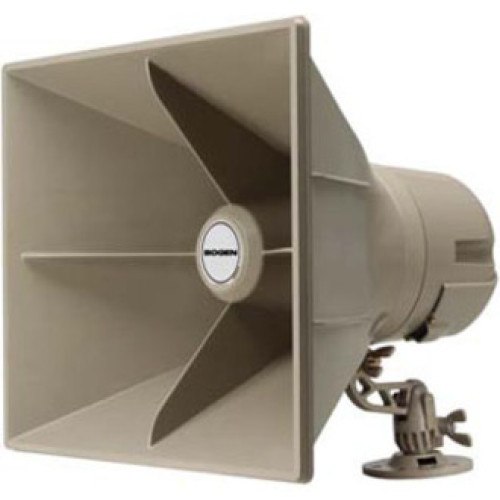

SAH Series Horn Speaker powered horn loudspeaker has an excellent extended frequency response from 1.6" diameter voice coil and 90mm, 12-ounce magnet structure. It employs digital switching amplifier technology resulting in low DC current draw and low heat dissipation. It features a weatherproof, UV-protected plastic housing. Includes two-year warranty.

Bogen SAH Series Public Address Equipment

Part Details: Bogen SAH15-24V High-Efficiency Digital Switching Amplified Horn 15W - 15W Amplifier

Need a different version of the Bogen SAH Series Public Address Equipment? View all 3 configurations

MSRP: $299.22 Price: $169.23

Additional Information

Manufacturer	Bogen
Model Name	SAH Series

Bogen SAH Series Specs (pdf)

General Information

Product Type: Megaphone
Brand Name: Bogen
Manufacturer: Bogen Communications International, Inc
Product Model: SAH15
Product Name: SAH15-24V High-Efficiency Digital Switching Amplified Horn 15W

Technical Information

Amplifier: 15 W
Features: Weather Proof

Physical Characteristics

Height: 12"
Width: 10.6"
Depth: 11.5"
Material:
- Plastic Housing UV Protected
- Aluminum Swivel Mount
Weight (Approximate): 6 lb

Other

Package Contents:
- SAH15-24V Amplified Horn
- Mounting strap
- SAH15-24V Amplified Horn
- Mounting strap
Additional Information:
- Typical Current Consumption: 9 CU (450 mA)
- 3 ways to position speaker to rotate, tilt, and swivel
- Max. Sound Level: 124 dBspl
- Input Sensitivity: 125 mVrms
- Input Impedance: 2k ohms
- Dispersion: 120° x 90º

Power Description

Input Voltage: 24 V DC
Power Source: DC
Frequency: 275 Hz to 14 kHz

Warranty

Limited Warranty: 2 Year

Controls/Indicators

Controls: Volume control knob

Extended Details

Bogen SAH Series Public Address Equipment Part #: SAH15 | SKU: BOG18469
