Bogen SPT30A Public Address Equipment
Part #: SPT30A | SKU: BOG18484

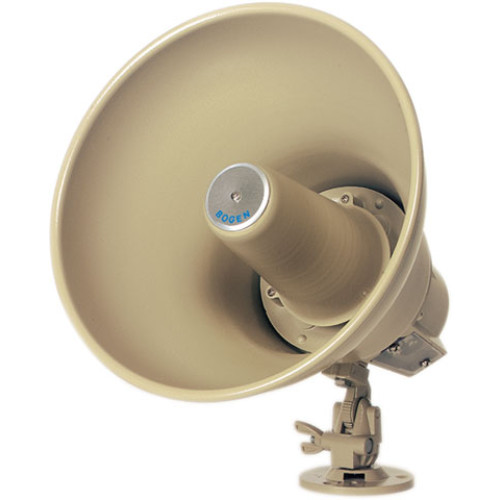

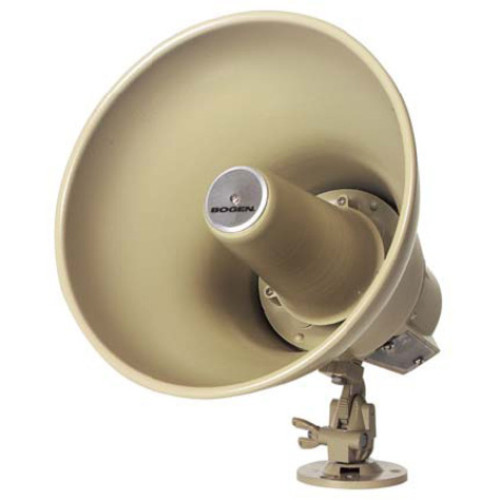

The Bogen SPT30A Horn Loudspeaker offers a textured mocha enamel and weatherproof all metal construction ideal for both indoor and outdoor applications such as in industrial plants, warehouses, schools, construction sites, transportation terminals and recreational areas. Uniquely designed all-purpose mounting brackets, self aligning field replaceable diaphragm and with screw terminals provide fast and easy installation.

Bogen SPT30A Public Address Equipment

Part Details: Bogen SPT30A Megaphone - 30 W Amplifier - Built-in Amplifier

Need a different version of the Bogen SPT30A Public Address Equipment? View all 1 configurations

MSRP: $274.30 Price: $155.13

Additional Information

Manufacturer	Bogen
Model Name	SPT30A

Bogen SPT30A Specs (pdf)

General Information

Product Type: Megaphone
Brand Name: Bogen
Manufacturer: Bogen Communications International, Inc
Product Model: SPT30A
Product Name: SPT30A Megaphone

Technical Information

Amplifier: 30 W
Features: Weather Proof

Physical Characteristics

Material: Metal
Weight (Approximate): 6 lb

Other

Additional Information:
- Power Rating (RMS): 30 watts continuous, 40 watts equalized
- Frequency Response: 225 Hz to 14 kHz
- Sound Pressure Level: 125 dB @ four feet on axis with 30-watt
- input @ 1000 Hz
- Dispersion: 100º
- Sensitivity as Microphone: -22 dBm [Ref: 10 dynes/cm2]
- Dimensions: 11" Diameter x 10-1/2" D
- 25V or 70V constant voltage line
- Impedance Selector Switch Settings:
- 25V @ 15, 7.5, 3.7, 1.8 watts
- 70V @ 30, 15, 7.5, 3.7, 1.8 watts

Warranty

Limited Warranty: Lifetime

Controls/Indicators

Controls: Variable impedance selector switch

Extended Details
