18498 Bogen

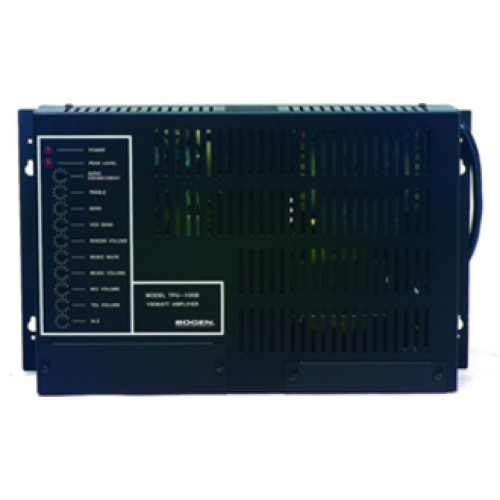

TPU60B - Bogen TPU Series Amplifier

TPU Series Amplifier, Telephone paging amplifiers, 60W, 600-ohm balanced telephone line input, LO-Z balanced microphone input, Background music input, Integral automatic level control (ALC) circuit, Aphex Aural Exciter, VOX sensitivity level control, 120V AC, 60Hz power source, Wall mount
InStock
$865.88 $418.98
Ships In 3-5 Days
Free Shipping
- +

Description

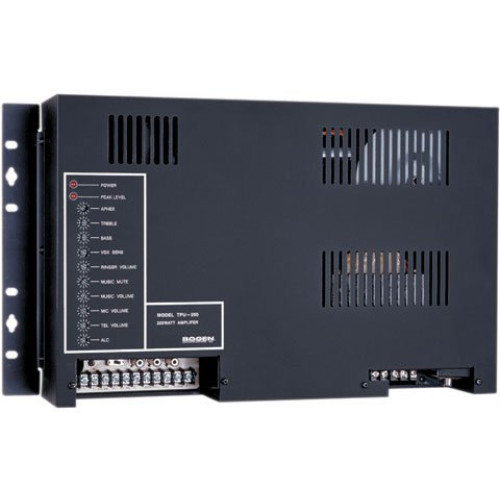

  • 35, 60, 100, and 250-watt models
  • Inputs for 600-ohm balanced telephone line, LO-Z balanced microphone, and background music
  • Music input (RCA jack or screw terminals)
  • Integral automatic level control (ALC) circuit for controlling pages made by persons with varying voice levels and paging techniques
  • Page from telephone and/or microphone
  • Signal-activated paging channel automatically mutes background music
  • Adjustable background music muting level during a page
  • Music gradually returns to its normal level after a page
  • Aphex Aural Exciter increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
  • Separate controls for page volume, music volume, night ringer, music mute, and Aphex Aural Exciter
  • Bass and treble controls
  • Built-in night ringer activated by contact closure or by 90V ring signal
  • Thermal and electronic overload protection
  • Jacks provided for bridging additional TPU amplifiers
  • 120V AC, 60Hz power source
  • UL and CSA listed

Additional Information

Manufacturer Bogen

General Information

Physical Characteristics

  • Height: 8.4"
  • Width: 14.3"
  • Depth: 3.6"
  • Color:
    • Black
    • Silver
  • Weight (Approximate): 15 lb

Other

  • Additional Information:
    • 60W RMS
    • Frequency Response: 70 Hz to 15k Hz ±1 dB
    • Distortion: Less than 1%
    • Power Requirements: 1.5A
    • Peak level indicator lights when amplifier is driven into clipping
    • Signal-activated paging channel automatically mutes background music
    • Music gradually returns to its normal level after a page

Warranty

  • Limited Warranty: 2 Year
