18499 Bogen

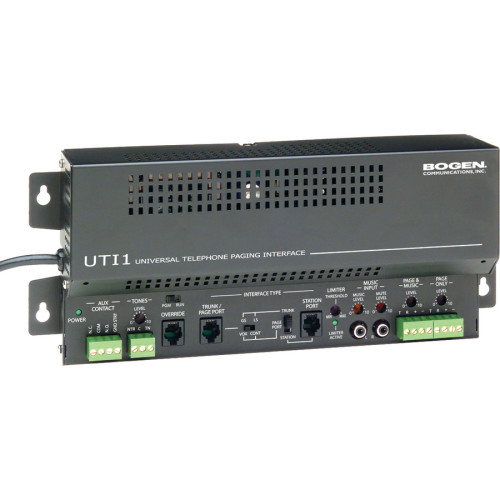

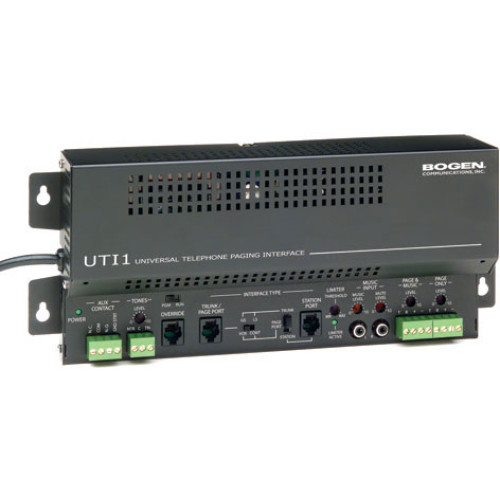

UTI1 - Bogen UTI1 Single-Zone Telephone Interface

UTI1 Single-Zone Telephone Interface, Universal Telephone Interface, Single-zone paging, Night Ringer, Tone Trigger, Tone burst, DTMF programming, Microcontroller-based operation
InStock
$345.06 $165.01
Ships Today
Free Shipping
- +

Description

The Bogen UTI1 Single-Zone Telephone Interface features both emergency and general all-call paging and can interface with any telephone port type.
  • Single-zone paging
  • Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
  • Simple 2-switch interface setup
  • Override paging (using loop start trunk or page port contact closure activation)
  • Programmable activation of AUX contacts
  • Two audio outputs (Page Only and Page with Background Music) both with level controls
  • Each output can provide audio drive for 150 selfamplified speakers
  • High impedance transformer-isolated background music input with volume control
  • Variable music mute
  • Night Ringer (contact closure activation)
  • Tone Trigger (tone and duration selectable, closureactivated)
  • Tone burst (2 to 7 sec), chime, and slow whoop tone selections
  • Programmable timers control page duration (station and trunk)
  • DTMF programming
  • Non-volatile memory for setup data (no backup battery required)
  • Pluggable terminal strips
  • Wall mounting flanges
  • Two-Year Warranty

Additional Information

Manufacturer Bogen

General Information

Physical Characteristics

  • Height: 5.3"
  • Width: 12.3"
  • Depth: 2.5"
  • Form Factor: Wall Mountable
  • Weight (Approximate): 5 lb

Other

  • Additional Information:
    • Single-zone paging
    • Simple 2-switch interface setup
    • Two audio outputs both with level controls
    • Adjustable output limiter with threshold control and active indicator
    • DTMF block to help suppress DTMF tones over paging system
    • Non-volatile memory for setup data (no backup battery required)
    • Microcontroller-based operation
    • Voltage: 120 VAC
    • Current: 0.5 A

Warranty

  • Limited Warranty: 2 Year
