| Manufacturer | Bogen |
|---|---|
| Model Name | VMIX Power Vector Mixer-Pre-Amplifier |

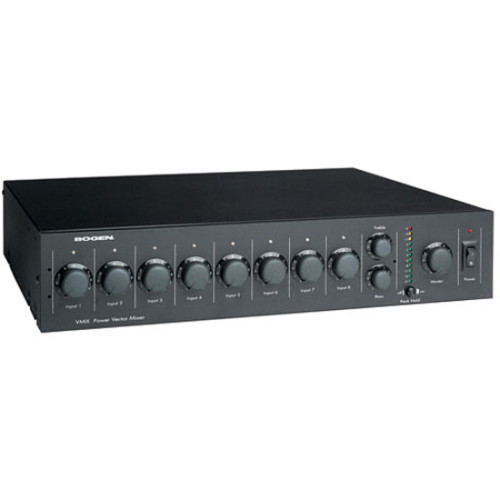

Bogen VMIX Power Vector Mixer-Pre-Amplifier Specs
General Information
- Product Type: Audio Mixer
- Brand Name: Bogen
- Manufacturer: Bogen Communications International, Inc
- Product Model: VMIX
- Product Name: VMIX Power Vector Audio Mixer
Physical Characteristics
- Height: 3.5"
- Width: 16.5"
- Depth: 12"
- Weight (Approximate): 18 lb
Other
- Additional Information:
- Wide selection of plug-in modules (sold separately)
- 8 input module bays; each with independent volume controls
- 2 module bays capable of handling signal-processing plug-in output modules
- 4 levels of priority between modules
- Motorized master volume control; remotely operated (with RVCP Remote Volume Control Panel, sold separately)
- LED signal/clip indicator for each channel
- Bass and treble controls
- 11-segment LED output level meter monitors the output level of the mixer with Peak Hold switch
- Balanced transformer-isolated output
- Balanced output signal level switch (-50, -10, and +4 dBµ)
- Unbalanced signal output jack
- Join multiple Power Vector mixers together using bridging jack and mute terminals
- 125 Hz Lo-cut feature (switch located in module bay 6)
- Tone control bypass switch (located in module bay 6)
- Rack mountable (rack mounting kit RPK87, sold separately)
- Resettable circuit breaker
- Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
- Power indicator
- Security cover to protect volume, bass, and treble controls (PVSC, sold separately)
- PVMC module security covers prevent tampering with module controls (8 included)
- Wide selection of plug-in modules (sold separately)
- 8 input module bays; each with independent volume controls
- 2 module bays capable of handling signal-processing plug-in output modules
- 4 levels of priority between modules
- Motorized master volume control; remotely operated (with RVCP Remote Volume Control Panel, sold separately)
- LED signal/clip indicator for each channel
- Bass and treble controls
- 11-segment LED output level meter monitors the output level of the mixer with Peak Hold switch
- Balanced transformer-isolated output
- Balanced output signal level switch (-50, -10, and +4 dBµ)
- Unbalanced signal output jack
- Join multiple Power Vector mixers together using bridging jack and mute terminals
- 125 Hz Lo-cut feature (switch located in module bay 6)
- Tone control bypass switch (located in module bay 6)
- Rack mountable (rack mounting kit RPK87, sold separately)
- Resettable circuit breaker
- Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
- Power indicator
- Security cover to protect volume, bass, and treble controls (PVSC, sold separately)
- PVMC module security covers prevent tampering with module controls (8 included)
- Certifications & Standards: cUL
Warranty
- Limited Warranty: 3 Year
