General Information
- Product Type: Wall Mount
- Product Series: PDR
- Brand Name: Chief
- Manufacturer: Chief Manufacturing
- Product Model: PDRU

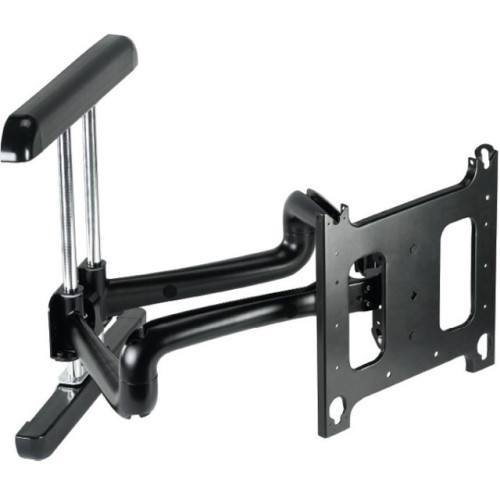

- Product Name: PDRU Universal Flat Panel Dual Swing Arm Wall Mount
Product Information
- Minimum Screen Size Supported: 42"
- Maximum Screen Size Supported: 71"
- Maximum Load Capacity: 200 lb
- Features:
- Tilt
- Swivel
- Device Supported: Flat Panel Display
- Maximum Adjustable Height: 1"
Physical Characteristics
- Height: 22"
- Width: 39.5"
- Depth: 3.4"
- Color: Black
Other
- Recycled: Yes
- Post-consumer-waste%: 30%
- Compatibility: Flat Panel Display
- Package Contents:
- PDRU Universal Flat Panel Dual Swing Arm Wall Mount
- Mounting Hardware
- PDRU Universal Flat Panel Dual Swing Arm Wall Mount
- Mounting Hardware
- Additional Information:
- Centris Technology tilt mechanism adjusts to provide fingertip tilt with most flat panels
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- CableTrac System provides built-in cable management channels inside the arms for a clean installation
- Depth From Wall: 3.4" (86 mm)
- Extension: 37" (940 mm)
- Tilt/Roll: +5º, -17º / ±2.5º
- Swivel: up to 90° left/right
- Lateral Shift: up to 9" (229 mm)
- Mounts on Studs: 16"
- Channel Size Width Each Arm: 0.63"
