Additional Information
| Manufacturer | Cisco |
|---|---|
| Model Name | Accessories |
Technical Information
- Antenna Gain: 14 dB
- Directivity: Directional
- Maximum Antenna Range: 16.7 Mile
- Frequency Band Type: UHF
- Frequency: 2.40 GHz to 2.50 GHz
- Impedance: 50 Ohm
- Polarization: Linear Vertical/Linear
- Survival Wind Speed: 1760 in/s
- Cable Length: 5 ft
General Information

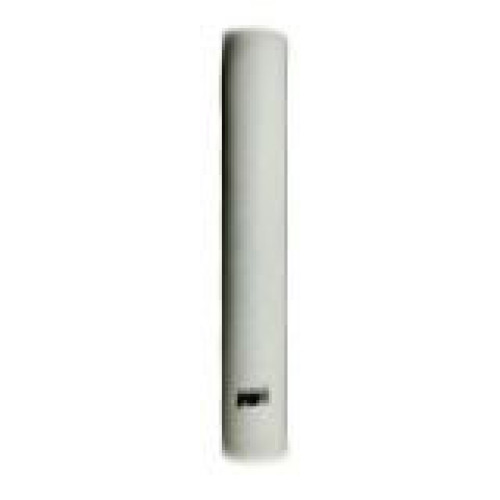

- Product Type: Antenna
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: AIR-ANT2414S-R
- Product Name: Aironet Sector Antenna
- Product Line: Aironet
Physical Characteristics
- Height: 36"
- Width: 6"
- Depth: 4"
- Form Factor: Sector
- Weight (Approximate): 6.50 lb
Interfaces/Ports
- Connector Type: RP-TNC
Other
- Application/Usage: Wireless Data Network
- Compatibility: Cisco Aironet 2.4 GHz Bridge
- Additional Information:
- All range estimations are based on use of a BR 1310 access point and the same type of antenna at each end of the connection under ideal outdoor conditions. The distances referenced here are approximations and should be used for estimation purposes only.
- Application: Outdoor long range point-to-multipoint applications
Warranty
- Limited Warranty: 1 Year
