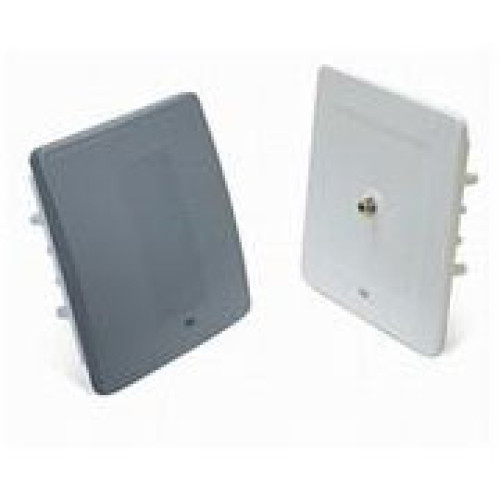

Cisco Aironet 1400 Series Wireless Bridge Data Networking
Part #: AIR-BR1410A-A-K9 | SKU: CIS40567

The Cisco Aironet 1400 Series Wireless Bridge creates a new benchmark for wireless bridging by providing a high-performance and feature-rich solution for connecting multiple LANs in a metro area. Building a metropolitan area wireless infrastructure with the Cisco Aironet 1400 Series Wireless Bridge provides deployment personnel with a flexible, easy to use solution that meets the security requirements of wide area networking professionals. Designed to be a cost-effective alternative to leased lines, it is engineered specifically for harsh outdoor environments, yet also works well in indoor deployments. The Cisco Aironet 1400 Series Wireless Bridge is the premier high-speed, high-performance outdoor bridging solution for line-of-sight applications.

Cisco Aironet 1400 Series Wireless Bridge Data Networking

Part Details: Aironet 1400 Series Wireless Bridge, Aironet 1410 Wireless Bridge (22.5 dBi Antenna, FCC Config)

Need a different version of the Cisco Aironet 1400 Series Wireless Bridge Data Networking? View all 3 configurations

Additional Information

Manufacturer AIDC	Cisco
Model Name	Aironet 1400 Series Wireless Bridge

Cisco Aironet 1400 Series Wireless Bridge Specs (pdf)

Technical Information

Wireless LAN Standard:
- IEEE 802.11a
- IEEE 802.11a
UNII Band:
- Yes
- Yes
Outdoor Antenna Range:
- 16 Mile
- 16 Mile
UNII Minimum Frequency:
- 5.73 GHz
- 5.73 GHz
Antenna Gain:
- 23 dB
- 23 dB
Total Number of Antennas: 1
Wireless Transmission Speed:
- 54 Mbps
- 54 Mbps
UNII Maximum Frequency:
- 5.80 GHz
- 5.83 GHz
Wireless Security:
- Authentication:
- 802.1x support including LEAP to yield mutual authentication and dynamic per-user, per-session encryption keys
- Encryption:
- Support for static and dynamic IEEE 802.11 WEP keys of 40 bits and 128 bits
- Pre-standard TKIP WEP enhancements: key hashing (per packet keying) and Message Integrity Check (MIC)
- IEEE 802.1x
- LEAP
- 40/128-bit WEP
- TKIP
- RADIUS
- ACS
- WPA
ISM Band: No
Antenna Type: Linear Polarization
Features: Quality of Service (QoS)

General Information

Product Type:
- Wireless Bridge
- Wireless Bridge
Product Series:
- 1400
- 1400
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Model:
- 1410
- 1410
Product Name:
- Aironet 1410 Wireless Bridge
- Aironet 1410 Wireless Bridge
Product Line:
- Aironet
- Aironet

Physical Characteristics

Height:
- 4.2"
- 11.4"
Depth:
- 11.4"
- 4.2"
Form Factor:
- Mast-mountable
- Wall Mountable
- Mast-mountable
- Wall Mountable
- Ceiling Mountable
- Pole-mountable
Weight (Approximate):
- 11 lb
- 11 lb
Width: 11.4"

Interfaces/Ports

Fast Ethernet Port:
- Yes
- Yes
Ethernet Port: Yes
Gigabit Ethernet Port: No
10Gigabit Ethernet Port: No
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: No
HDMI: No
VGA: No
Audio Line Out: No
Network (RJ-11): No
Powerline: No

Other

Package Contents:
- Aironet 1410 Wireless Bridge
- 22.5 dBi Antenna
- Aironet 1410 Wireless Bridge
- 22.5 dBi Antenna
Certifications & Standards:
- SNMP compliance: v1 and v2
- IEEE:
- 802.1x
- 802.11
- 802.11i
- 802.11a
- 802.11b
- Safety:
- UL 60950
- CSA C22.2 No. 60950-00
- IEC 60950
- EN 60950
- Radio Approvals:
- FCC Part 15.207, 15.407 & 15.209 Class B
- ICES-003 Class B (Canada)
- Canada DGTP-010
- FCC Bulletin OET-65C
- Industry Canada RSS-102, RSP100, RSS 210 Issue 5
- EMI and Susceptibility (ClassB):
- FCC Part 15.107 & 15.109 Class B
- ICES-003 Class B (Canada)
- EN 55022 Class B
- EN 55024
- Safety:
- UL 60950
- CSA C22.2 No. 60950-00
- IEC 60950
- EN 60950
- Radio Approvals:
- FCC Part 15.207, 15.407 & 15.209 Class B
- ICES-003 Class B (Canada)
- Canada DGTP-010
- FCC Bulletin OET-65C
- Industry Canada RSS-102, RSP100, RSS 210 Issue 5
- EMI and Susceptibility (Class B):
- FCC Part 15.107 & 15.109 Class B
- ICES-003 Class B (Canada)
- EN 55022 Class B
- EN 55024
Additional Information:
- Uplink: 100 Mbps over dual coaxial cables
- DC Power: 48 VDC +/-2V
- Enclosure: Aluminum with environmentally sealed plastic radome
- Status LED:
- Install
- Radio
- Status
- Ethernet

Management & Protocols

Management:
- Configuration support:
- Telnet
- HTTP
- FTP
- TFTP
- SNMP
- Telnet
- SNMP v1/2
- VLAN
- CiscoWorks WLSE
- Web-based Management

Warranty

Limited Warranty: 1 Year
Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Direct replacement warranty provided by Ingram Micro (1 year for components, 3 year for systems)
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Product condition subject to availability
- Replacement parts are from our Service inventory and meet our rigorous inspection and quality standards. Some will be new, some are manufacturer certified refurbished, some are considered 'as new' and have been tested, refurbished or remanufactured. All are fully warranted
- Where applicable, -IM indicates an Ingram Micro certified pre-owned product

Power Description

Input Voltage:
- 48 V DC
- 110 V AC
- 48 V DC
Power Source:
- AC Adapter
- AC Adapter

Extended Details

Cisco Aironet 1400 Series Wireless Bridge Data Networking Part #: AIR-BR1410A-A-K9 | SKU: CIS40567
