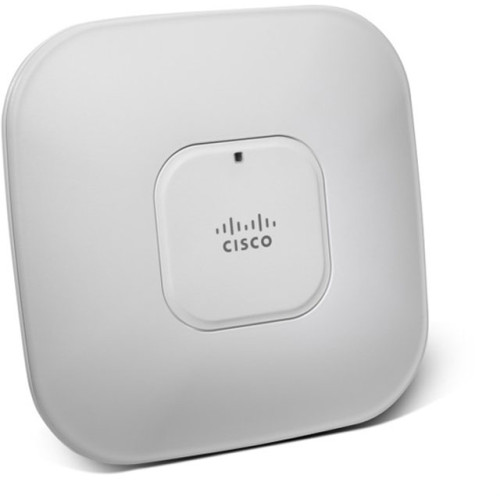

Cisco Aironet 1140 Series Access Point
Part #: AIR-LAP1141N-A-K9 | SKU: CIS89882

The Cisco Aironet 1140 Series is a business-ready, 802.11n access point designed for simple deployment and energy efficiency. The high-performance platform, which offers at least six times the throughput of existing 802.11a/g networks, prepares the business for the next wave of mobile devices and applications. Building on the Cisco Aironet 1140 Series heritage of RF excellence, the Aironet 1140 Series combines the industry’s most widely deployed 802.11n technology with a sleek industrial design that blends seamlessly into any enterprise environment. Designed for sustainability, the 1140 Series delivers high performance from standard 802.3af Power over Ethernet while decreasing waste with multiunit eco-packs and Energy Star certified power supplies.

Cisco Aironet 1140 Series Access Point

Part Details: Cisco Aironet 1141N Wireless Lightweight Access Point - IEEE 802.11n (draft), IEEE 802.11b/g 300Mbps - 1 x 10/100/1000Base-T

Additional Information

Manufacturer Cisco
Model Name Aironet 1140 Series

Technical Information

  • Wireless LAN Standard:
    • IEEE 802.11n
    • IEEE 802.11n
  • ISM Band:
    • Yes
    • Yes
  • ISM Minimum Frequency:
    • 2.41 GHz
    • 2.41 GHz
  • Antenna Gain:
    • 4 dBi
    • 4 dBi
  • Wireless Transmission Speed:
    • 300 Mbps
    • 300 Mbps
  • ISM Maximum Frequency:
    • 2.46 GHz
    • 2.46 GHz
  • Wireless Security:
    • WPA
    • WPA2
    • EAP-TLS
    • EAP-TTLS
    • EAP-MSCHAPv2
    • EAP-FAST
    • EAP-SIM
    • EAP-GTC
    • PEAP
    • TKIP
    • WPA
    • WPA2
    • TKIP
    • EAP-TLS
    • EAP-TTLS
    • EAP-FAST
    • EAP-SIM
    • EAP-MSCHAPv2
    • EAP-GTC
    • PEAP
  • UNII Band: No
  • Features: MIMO Technology

General Information

  • Product Type:
    • Wireless Access Point
    • Wireless Access Point
  • Product Series:
    • 1140
    • 1140
  • Brand Name:
    • Cisco
    • Cisco-IMSourcing
  • Manufacturer:
  • Product Model:
    • 1141N
    • 1141N
  • Product Name:
    • Aironet 1141N Wireless Lightweight Access Point
    • Aironet 1142N Access Point
  • Product Line:
    • Aironet
    • Aironet

Physical Characteristics

  • Height:
    • 1.8"
    • 1.8"
  • Depth:
    • 8.7"
    • 8.7"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate):
    • 2.30 lb
    • 2.30 lb
  • Width: 8.7"

Interfaces/Ports

  • Number of Network (RJ-45) Ports:
    • 1
    • 1
  • PoE (RJ-45) Port:
    • Yes
    • No
  • Management Port:
    • Yes
    • Yes
  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • USB: No
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No

Other

  • Additional Information:
    • Wi-Fi Multimedia (WMM)
    • Cisco Unified Wireless Network Software Release 5.2 or later
  • Certifications & Standards:
    • Safety:
    • UL 60950-1
    • CAN/CSA-C22.2 No. 60950-1
    • UL 2043
    • IEC 60950-1
    • EN 60950-1
    • Radio Approvals:
    • FCC Part 15.247, 15.407
    • RSS-210 (Canada)
    • EN 300.328, EN 301.893 (Europe)
    • ARIB-STD 33 (Japan)
    • ARIB-STD 66 (Japan)
    • ARIB-STD T71 (Japan)
    • AS/NZS 4268.2003 (Australia and New Zealand)
    • EMI and susceptibility (Class B)
    • FCC Part 15.107 and 15.109
    • ICES-003 (Canada)
    • VCCI (Japan)
    • EN 301.489-1 and -17 (Europe)
    • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
    • IEEE Standards:
    • 802.11b
    • 802.11g
    • 802.11n
    • 802.11h
    • 802.11d

Power Description

  • Power Source:
    • Power Supply
    • Power Supply
    • PoE
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Warranty

  • Limited Warranty: 90 Day
