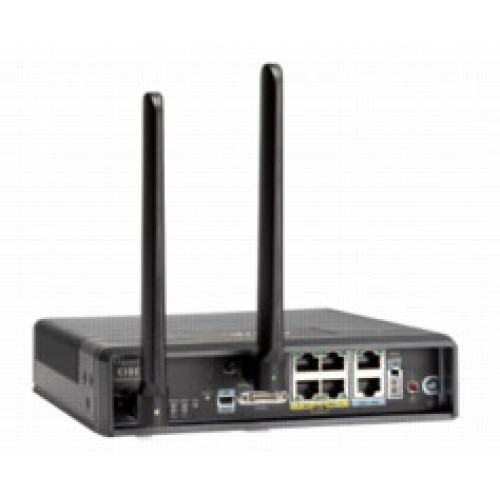

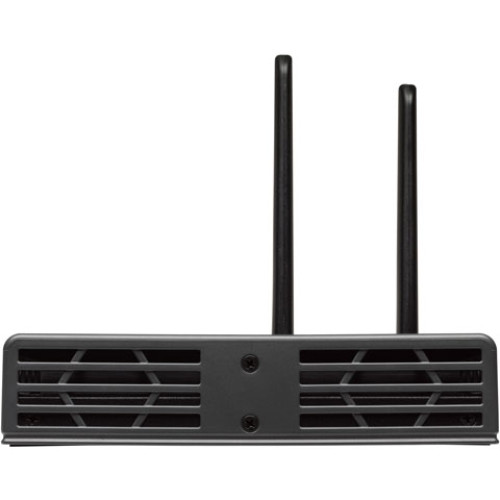

Cisco C819 Data Networking
Part #: C819HG+7-K9 | SKU: CIS183486

The Cisco 819 ISRs provide Internet, VPN, data, and backup capability to corporate teleworkers and remote and small offices of fewer than 20 users. These routers are capable of bridging and multiprotocol routing between LAN and WAN ports and provide advanced features such as antivirus protection. The Cisco 819 ISRs are fixed-configuration data routers that provide four 10/100 Fast Ethernet (FE), 1 Gigabit Ethernet (GE), and WAN connections over Serial and Cellular (3G) interface. The Cisco 819HGW and Cisco 819HWD ISRs support WiFi radios (AP802H-AGN). A Wireless Local Area Network (WLAN) implements a flexible data communication system frequently augmenting rather than replacing a wired LAN within a building or campus. WLANs use radio frequency to transmit and receive data over the air, minimizing the need for wired connections. The Cisco 819HG-4G and Cisco 819G-4G support multimode 4G LTE and have embedded Sierra Wireless multimode modem.

Cisco C819 Data Networking

Part Details: C819 Secure Hardened M2M GW 3.7G HSPA + R7, SMS/GPS

Need a different version of the Cisco C819 Data Networking? View all 8 configurations

MSRP: $2,100.00 Price: $1,609.09

Additional Information

Manufacturer AIDC	Cisco
Model Name	C819

Cisco C819 Specs (pdf)

General Information

Product Type: Wireless Integrated Services Router
Product Series: 800
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 819H
Product Name: 819H Wireless Integrated Services Router

Physical Characteristics

Height: 1.7"
Width: 7.7"
Depth: 8.1"
Form Factor:
- Rail-mountable
- Wall Mountable
- Desktop
Weight (Approximate): 3.20 lb

Interfaces/Ports

Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: Yes
USB: Yes
Number of Network (RJ-45) Ports: 4
Number of Broadband (RJ-45) Ports: 1
PoE (RJ-45) Port: No
VGA: No
Network (RJ-11): No
Powerline: No
Management Port: Yes
Serial: Yes

Management & Protocols

Management:
- SNMP v2,v3
- Web-based Management
- MIB
- Telnet
- CiscoWorks
- HP OpenView
- CLI
- DHCP
- VLAN
- Cisco Configuration Professional
- Cisco Configuration Engine support
- Cisco IOS Embedded Event Manager (EEM)
Security Features:
- AES
- Content Filtering
- IPSec
- VPN
- NAT
- MAC Filtering
- ACL
- DES
- 3DES
- 128/192/256-bit AES
- PKI
- Zone-Based Policy Firewall
- Stateful Inspection Transparent Firewall
- IPS
- SSL
- RADIUS
- SSH
- TACACS+

Wireless Specifications

Broadband Transmission Technology: Cellular
ISM Band: No
UNII Band: No
Cellular Data Connectivity Technology:
- HSPA+
- HSDPA
- UMTS
- EDGE
- GPRS
Cellular Generation: 3G
Cellular Network Supported:
- GSM 850
- GSM 900
- GSM 1900
- GSM 1800
Total Number of Antennas: 2
Wireless Transmission Speed: 21 Mbps
Antenna Type: Dipole Antenna
Antenna Connector: TNC Connector
Features: Quality of Service (QoS)

I/O Expansions

Expansion Slots: 2 x SIM Card

Network & Communication

Ethernet Technology: Gigabit Ethernet

Power Description

Power Source: AC Supply

Extended Details

Cisco C819 Data Networking Part #: C819HG+7-K9 | SKU: CIS183486
