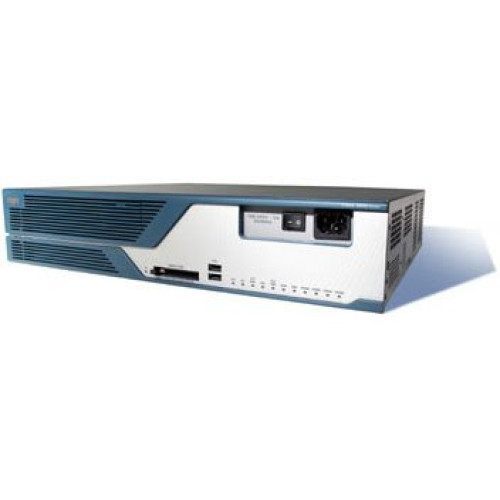

Cisco 3800 Series: 3845 Data Networking
Part #: CISCO3845-AC-IP | SKU: CIS70501

Cisco Systems, Inc. redefines branch office routing with a portfolio of Integrated Services Routers optimized for secure, wire-speed delivery of concurrent data, voice, video, and wireless services. Founded on 20 years of innovation, the Cisco 3800 Series: 3845 Integrated Services Router provides customers with unparalleled network agility, performance, and intelligence. The Cisco 3800 Series: 3845 transparently integrates advanced technologies, adaptive services, and secure enterprise communications into a single, resilient system. The Cisco 3800 Series: 3845 routers ease deployment and management, lower network cost and complexity, and provide unmatched investment protection.

Cisco 3800 Series: 3845 Data Networking

Part Details: 3845 Integrated Services Router, (with AC Power, POE, 2GE, 1SFP, 4 NME, 4HWIC, IP Base and 64F/256D)

Need a different version of the Cisco 3800 Series: 3845 Data Networking? View all 2 configurations

Additional Information

Manufacturer AIDC	Cisco
Model Name	3800 Series: 3845

Cisco 3800 Series: 3845 Specs (pdf)

General Information

Product Type: Router
Product Series: 3800
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Model: 3845
Product Name: 3845 Router with Power over Ethernet

Physical Characteristics

Compatible Rack Unit: 3U
Height: 5.3"
Width: 17.3"
Depth: 16"
Form Factor: Rack-mountable
Weight (Approximate): 45 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 2
Total Number of Ports: 2
USB: Yes
Management Port: Yes

Other

Package Contents:
- 3845 Router
- Cisco 3845 IOS IP BASE
- Device manager for routers (ROUTER-SDM)
- Cisco 3845 motherboard (CISCO3845-MB)
- 256MB SDRAM default memory for 3800 (MEM3800-256D-INCL)
- 64MB Cisco 3800 Compact Flash Memory Default (MEM3800-64CF-INCL)
- Cisco 3845 Power Supply blank panel (C3845-PS-BLANK)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL)
- Cisco 3845 AC-IP factory upgrade option power supply (PWR-3845-AC-IP)
- Power Cord, 110V (CAB-AC)
- RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access
- One 2.54-mm (0.100 in.) centerline, single row shunt
- Ground lug and two mounting screws
- One pair of rack-mount brackets with screws for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- One pair of brackets for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- Cisco Product Registration Card
- Cisco 3800 Series Integrated Services Routers Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 3800 Series Integrated Services Routers Quick Start Guide
- 3845 Router
- Cisco 3845 IOS IP BASE
- Device manager for routers (ROUTER-SDM)
- Cisco 3845 motherboard (CISCO3845-MB)
- 256MB SDRAM default memory for 3800 (MEM3800-256D-INCL)
- 64MB Cisco 3800 Compact Flash Memory Default (MEM3800-64CF-INCL)
- Cisco 3845 Power Supply blank panel (C3845-PS-BLANK)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL)
- Cisco 3845 AC-IP factory upgrade option power supply (PWR-3845-AC-IP)
- Power Cord, 110V (CAB-AC)
- RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access
- One 2.54-mm (0.100 in.) centerline, single row shunt
- Ground lug and two mounting screws
- One pair of rack-mount brackets with screws for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- One pair of brackets for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- Cisco Product Registration Card
- Cisco 3800 Series Integrated Services Routers Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 3800 Series Integrated Services Routers Quick Start Guide
Certifications & Standards:
- IEEE 802.3: 10BASE-T
- IEEE 802.3u: 100BASE-TX
- IEEE 802.3ab: 1000BASE-T
- IEEE 802.3af: Power-over-Ethernet
- USB 1.1
- Safety:
- UL 60950
- CAN/CSA C22.2 No. 60950
- EN 60950
- AS/NZS 60950
- EMC:
- 47 CFR, Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI V-3
- EN 300386
- EN 61000
- TELCOM:
- 47 CFR, Part 68
- TIA/EIA/IS-968
- CS-03
- RTTE Directive
Additional Information:
- Network-Module slots:
- These slots can accommodate a standard network-module, enhanced-network-module (NME), enhanced-extended-network-module (NME-X), and high-density extension module (EVM-HD)
- Maximum number of network modules, NMEs, and NME-Xs supported: 4
- Maximum number of NMD/NME-XDs supported: 2
- Maximum number of EVM-HDs supported: 2
- HWIC slots:
- These slots also support VICs, VWICs, and WICs
- PVDM slots:
- These slots accommodate digital-signal-processor (DSP) modules for packet voice processing
- Rack-Mounting:
- National Equipment Building Standard (NEBS)/European Telecommunication Standards Institute (ETSI) options
- Power Dissipations:
- AC without IP phone support: 435W (1485 BTU/hr)
- AC with IP phone support-System only: 555W (1890 BTU/hr)
- AC with IP phone support-IP phones: 360W (1128 BTU/hr)
- Operation Altitude:
- Up to 6500 ft (2000m), derate 1°C per 1000 ft
- Noise Level:
- 56 dBa typical, 58 dBa maximum

I/O Expansions

Number of Total Expansion Slots: 15
Expansion Slot Type:
- NME
- HWIC
- AIM
- PVDM
- SFP (mini-GBIC)

Memory

Flash Memory: 64 MB
Standard Memory: 256 MB
Memory Technology: DRAM
Maximum Memory: 1 GB

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Network & Communication

Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T

Warranty

Limited Warranty: 90 Day

Extended Details

Cisco 3800 Series: 3845 Data Networking Part #: CISCO3845-AC-IP | SKU: CIS70501
