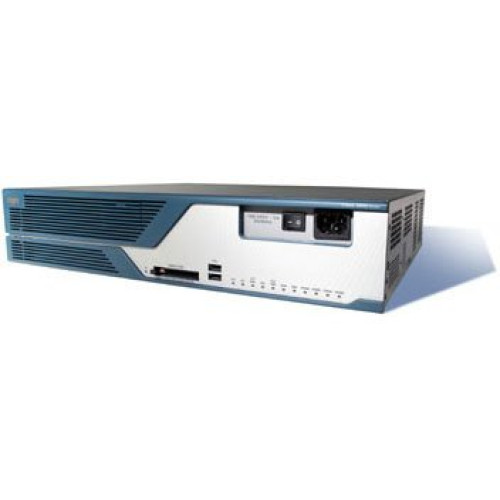

Cisco 3800 Series: 3845 Data Networking
Part #: CISCO3845-HSEC/K9 | SKU: CIS40499

Cisco Systems, Inc. redefines branch office routing with a portfolio of Integrated Services Routers optimized for secure, wire-speed delivery of concurrent data, voice, video, and wireless services. Founded on 20 years of innovation, the Cisco 3800 Series: 3845 Integrated Services Router provides customers with unparalleled network agility, performance, and intelligence. The Cisco 3800 Series: 3845 transparently integrates advanced technologies, adaptive services, and secure enterprise communications into a single, resilient system. The Cisco 3800 Series: 3845 routers ease deployment and management, lower network cost and complexity, and provide unmatched investment protection.

Cisco 3800 Series: 3845 Data Networking

Part Details: 3800 Series: 3845, 3845 Security Bundle (with IOS Advanced IP Services, AIM-VPN/SSL-3, 128MB Flash/512MB DRAM and 25 User SSL License)

Need a different version of the Cisco 3800 Series: 3845 Data Networking? View all 2 configurations

Additional Information

Manufacturer AIDC	Cisco
Model Name	3800 Series: 3845

Cisco 3800 Series: 3845 Specs (pdf)

General Information

Product Type:
- Router
- Router
Product Series:
- 3800
- 3800
Brand Name:
- Cisco
- Cisco-IMSourcing
Manufacturer:
- Cisco Systems, Inc
- Cisco-IMSourcing
Product Model:
- 3845
- 3845
Product Name:
- 3845 Router with Enhanced Security Bundle
- 3845 Security Bundle

Physical Characteristics

Compatible Rack Unit:
- 3U
- 3U
Height:
- 5.3"
- 5.3"
Width:
- 17.3"
- 17.3"
Depth:
- 16"
- 16"
Form Factor:
- Rack-mountable
- Desktop
- Rack-mountable
Weight (Approximate):
- 45 lb
- 35 lb

Interfaces/Ports

Number of Network (RJ-45) Ports:
- 2
- 2
Total Number of Ports:
- 2
- 2
USB:
- Yes
- Yes
Management Port:
- Yes
- Yes
Token Ring Port: No
Powerline: No
Serial V.35 Interface: No

Other

Package Contents:
- 3845 Router
- 25 SSL vpn Licenses (FL-WEBVPN-25-K9)
- Cisco 3845 IOS ADVANCED IP SERVICES
- Device manager for routers (ROUTER-SDM)
- DES/3DES/AES VPN Encryption/Compression (AIM-VPN/SSL-3)
- Cisco 3845 motherboard (CISCO3845-MB)
- 512MB DRAM default memory for 3800 (MEM3800-256U512D)
- 128MB Cisco 3800 Compact Flash Memory Default (MEM3800-64U128CF)
- Cisco 3845 Power Supply blank panel (C3845-PS-BLANK)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL)
- Cisco 3845 AC power supply (PWR-3845-AC)
- Power Cord, 110V (CAB-AC)
- RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access
- One 2.54-mm (0.100 in.) centerline, single row shunt
- Ground lug and two mounting screws
- One pair of rack-mount brackets with screws for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- One pair of brackets for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- Cisco Product Registration Card
- Cisco 3800 Series Integrated Services Routers Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 3800 Series Integrated Services Routers Quick Start Guide
- 3845 Router
- 25 SSL vpn Licenses (FL-WEBVPN-25-K9)
- Cisco 3845 IOS ADVANCED IP SERVICES
- Device manager for routers (ROUTER-SDM)
- DES/3DES/AES VPN Encryption/Compression (AIM-VPN/SSL-3)
- Cisco 3845 motherboard (CISCO3845-MB)
- 512MB DRAM default memory for 3800 (MEM3800-256U512D)
- 128MB Cisco 3800 Compact Flash Memory Default (MEM3800-64U128CF)
- Cisco 3845 Power Supply blank panel (C3845-PS-BLANK)
- Blank WAN Interface Card Panel (WIC-BLANK-PANEL)
- Cisco 2800 and 3800 Series Blank network module panel (NM-28/38BLNK-PANEL)
- Cisco 3845 AC power supply (PWR-3845-AC)
- Power Cord, 110V (CAB-AC)
- RJ-45-to-DB-9 console cable and RJ-45-to-DB-25 modem cable for management access
- One 2.54-mm (0.100 in.) centerline, single row shunt
- Ground lug and two mounting screws
- One pair of rack-mount brackets with screws for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- One pair of brackets for 19-inch (48.26-cm) rack (screws are for bracket-to-chassis attachment)
- Cisco Product Registration Card
- Cisco 3800 Series Integrated Services Routers Regulatory Compliance and Safety Information document
- Cisco Router and Security Device Manager (SDM) Quick Start Guide document
- Cisco 3800 Series Integrated Services Routers Quick Start Guide
- 3845 Security Bundle
- Encryption Module (AIM-VPN/SSL-3)
- 3845 Security Bundle
- Encryption Module (AIM-VPN/SSL-3)
Certifications & Standards:
- IEEE 802.3: 10BASE-T
- IEEE 802.3u: 100BASE-TX
- IEEE 802.3ab: 1000BASE-T
- IEEE 802.1x: Authentication
- USB 1.1
- Safety:
- UL 60950
- CAN/CSA C22.2 No. 60950
- EN 60950
- AS/NZS 60950
- EMC:
- 47 CFR, Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI V-3
- EN 300386
- EN 61000
- TELCOM:
- 47 CFR, Part 68
- TIA/EIA/IS-968
- CS-03
- RTTE Directive
- Safety:
- UL 60950
- CAN/CSA C22.2 No. 60950
- EN 60950
- AS/NZS 60950
- EMC:
- 47 CFR, Part 15
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI V-3
- EN 300386
- EN 61000
- Telcom:
- 47 CFR, Part 68
- TIA/EIA/IS-968
- CS-03
- RTTE Directive
- IEEE Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.1x
Additional Information:
- Network-Module slots:
- These slots can accommodate a standard network-module, enhanced-network-module (NME), enhanced-extended-network-module (NME-X), and high-density extension module (EVM-HD)
- Maximum number of network modules, NMEs, and NME-Xs supported: 4
- Maximum number of NMD/NME-XDs supported: 2
- Maximum number of EVM-HDs supported: 2
- HWIC slots:
- These slots also support VICs, VWICs, and WICs
- PVDM slots:
- These slots accommodate digital-signal-processor (DSP) modules for packet voice processing
- Rack-Mounting:
- National Equipment Building Standard (NEBS)/European Telecommunication Standards Institute (ETSI) options
- Operation Altitude:
- Up to 6500 ft (2000m), derate 1°C per 1000 ft
- Noise Level:
- 56 dBa typical, 58 dBa maximum

Management & Protocols

Security Features:
- AIM-based security acceleration
- Multiprotocol Label Switching (MPLS) VPN support
- Secure Shell
- Easy VPN Client and Server
- Integrated hardware for offload of encryption services processing supports IPSec DES, 3DES, and AES 128, AES 192, and AES 256 encryption modes
- Threat Defense:
- Cisco IOS Firewall
- Transparent Firewall
- Intrusion Detection
- Intrusion Prevention
- URL Filtering
- Trust and Identity:
- Network Admission Control (NAC)
- Authentication, Authorization, and Accounting (AAA)
- 802.1x Support
- Network Device Protection:
- Control Plane Policing
- AutoSecure
- Network-Based Application Recognition (NBAR)
- IPSec
- AES
- DES
- 3DES
- MPLS
- IPS
- NAC
- Firewall Protection

I/O Expansions

Number of Total Expansion Slots:
- 15
- 15
Expansion Slot Type:
- NME
- HWIC
- AIM
- PVDM
- SFP (mini-GBIC)
- NME
- NME-X
- NME-XD
- EVM
- HWIC
- SFP (mini-GBIC)
- AIM
- PVDM

Memory

Flash Memory:
- 128 MB
- 128 MB
Standard Memory:
- 512 MB
- 512 MB
Memory Technology:
- DRAM
- DRAM
Maximum Memory:
- 1 GB
- 512 MB
Memory Card Supported: CompactFlash (CF) Card

Warranty

Limited Warranty:
- 90 Day
- 3 Year
Additional Warranty Information:
- Product does not ship from original manufacturer
- Product may not be eligible for original manufacturer warranty, rebates or programs
- Product condition subject to availability
- Three years direct replacement warranty provided by Ingram Micro
- Product ships from IMSourcing facility within 2-3 days or from stock
- Product may ship in non-standard packaging
- All returns processed directly from IMSourcing
- Where applicable, IM indicates an Ingram Micro certified pre-owned product

Power Description

Input Voltage:
- 110 V AC
- 220 V AC
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
- Power Supply
Redundant Power Supply: Yes

Network & Communication

Ethernet Technology:
- Gigabit Ethernet
- Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10/100/1000Base-T

Extended Details

Cisco 3800 Series: 3845 Data Networking Part #: CISCO3845-HSEC/K9 | SKU: CIS40499
