| Manufacturer | Cisco |
|---|---|
| Model Name | Accessories |
General Information
- Product Type: HWIC
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc

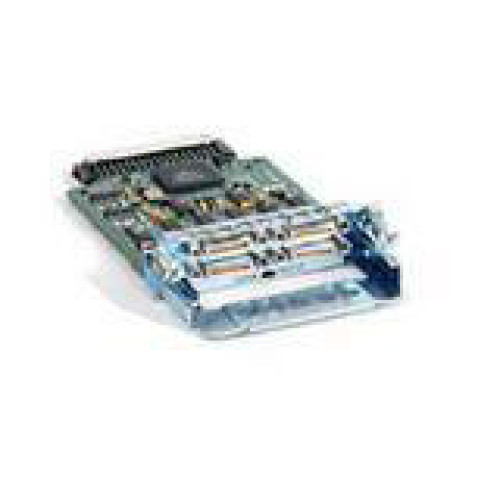

- Product Name: 4-Port Serial High-Speed WAN Interface Card
Technical Information
- Application/Usage: Wide Area Network
Physical Characteristics
- Dimensions: 0.8" Height x 3.1" Width x 5.6" Depth
Interfaces/Ports
- Interfaces/Ports: 4 x Synchronous /Asynchronous Serial WAN
- Interfaces/Ports Details: 4 x Smart Serial Asynchronous/Synchronous Serial WAN
Other
- Certifications & Standards:
- Agency Approvals:
- UL 1950 (United States)
- CSA-C22.2 #950 (Canada)
- EN60950 (Europe)
- TUV GS (Germany)
- IEC 950 (International)
- Immunity:
- EN300386
- EN55024/CISPR24
- EN50082-1
- Emissions:
- FCC Part 15 Class A
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- EN 300386
- EN61000-3-3
- EN61000-3-2
- System Requirements:
- HWIC slot
- Supported Platforms & Minimum IOS Versions:
- Cisco 2851 - 12.3(14)T
- Cisco 2821 - 12.3(14)T
- Cisco 2811 - 12.3(14)T
- 3845 - 12.3(14)T
- 3825 - 12.3(14)T
- Additional Information:
- Spare Product
- Lead Manipulation
- Network Clock Synchronization
- Modular Router Solutions:
- DCN (Data Communications Network)
- Serial & Legacy Concentration
- Interfaces supported are as follows:
- In both DTE and DCE formats: V35, X21, RS-232, and RS-449
- In DTE format only: EIA-530 and EIA-530A
Management & Protocols
- Protocols:
- PPP
- HDLC
- Bi-sync
- SLIP
- X.25
Media & Performance
- Data Transfer Rate:
- 8 Mbps Maximum Synchronous Serial Per Port
- 230.40 Kbps Maximum Asynchronous Serial Per Port
- Connectivity Media: Serial Cable
Environmental Conditions
- Humidity: 10% to 90% Non-condensing Relative Humidity
- Temperature:
- 32°F (0°C) to 104°F (40°C) Operating
- 4°F (-15.6°C) to 149°F (65°C) Storage
Warranty
- Limited Warranty: 90
Controls/Indicators
- Status Indicators: CONN
