40733 Cisco

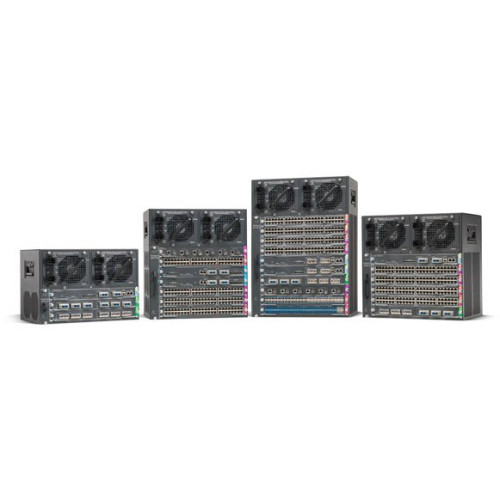

Cisco Catalyst 4500 Series Switch Data Networking Device Part # PWR-C45-1400AC=

Each Cisco Catalyst 4500 Series chassis model has a different number of available card slots and can accommodate a variety of line card and supervisor options. Customers can choose 48-port 10/100, 10/100/1000 and Power over Ethernet line cards. These cards can be added to the chassis as needed to customize an access, distribution, or server aggregation platform.

PWR-C45-1400AC= - Cisco Catalyst 4500 Series Switch

Part Details: Catalyst 4500 Series Switch, Catalyst 4500 1400W AC Power supply (Data Only - Spare)
InStock
MSRP: $1,570.00 Price: $1,179.16
In Stock - Ships Free

Additional Information

Manufacturer Cisco
Product Condition New

General Information

  • Product Type: Redundant Power Supply
  • Brand Name: Cisco
  • Manufacturer: Cisco Systems, Inc
  • Product Name: 1400 Watt Redundant Power Supply

Other

  • Certifications & Standards:
    • Safety:
    • UL 60950
    • CAN/CSA-C22.2 No. 60950
    • EN 60950
    • IEC 60950
    • TS 001
    • AS/NZS 3260
    • Electromagnetic Compatibility (EMC):
    • FCC Part 15 (CFR 47) Class A
    • ICES-003 Class A
    • EN55022 Class A
    • CISPR22 Class A
    • AS/NZS 3548 Class A
    • VCCI Class A
    • EN 55022
    • EN 55024
    • EN 61000-6-1
    • EN 50082-1
    • EN 61000-3-2
    • EN 61000-3-3
    • ETS 300 386
    • Industry EMC, Safety, and Environmental Standards:
    • GR-63-Core Network Equipment Building Standards (NEBS) Level 3
    • GR-1089-Core Level 3
    • ETS 300 019 Storage Class 1.1
    • ETS 300 019 Transportation Class 2.3 (pending)
    • ETS 300 019 Stationary Use Class 3.1
    • ETS 300 386
  • Compatibility:
    • Cisco Catalyst 4503
    • Cisco Catalyst 4506
    • Cisco Catalyst 4507R
    • Cisco Catalyst 4510R
  • System Requirements:
    • Minimum IOS software requirement:
    • Cisco IOS Software Version 12.2(18)EW
  • Additional Information:
    • Output Power Redundant Mode (Data): 1360W + 40W
    • Output Power Combined Mode (Data): 2473W
    • Heat Dissipation: 943 BTU/Hr
    • Simple Network Management Protocol (SNMP) Management Information Base (MIB) supported

Power Description

  • Input Voltage: 240 V AC
  • Output Power: 1.40 kW
  • Input Voltage Range: 100 V AC to 240 V AC
  • Input Current:
    • 16 A @ 110V
    • 7 A @ 220V
  • Output Voltage:
    • 3.3 V DC
    • 12 V DC

Controls/Indicators

  • Status Indicators:
    • Fan cooling
    • Good
    • Fail

Warranty

  • Limited Warranty: 90 Day
