| Manufacturer | Cisco |
|---|---|
| Model Name | Accessories |
Technical Information
- Wireless LAN Standard: IEEE 802.11n
- ISM Band: Yes
- UNII Band: No
- Antenna Gain: 2 dBi
- Antenna Type: PIFA Antenna
- Wireless Transmission Speed: 300 Mbps
- ISM Maximum Frequency: 2.40 GHz
- Features: Quality of Service (QoS)
- Wireless Security:
- Wi-Fi Protected Setup (WPS)
- Access Control List
- WPA2-Enterprise
- WPA-Enterprise
- IEEE 802.1x
- IEEE 802.1i
- RADIUS
- WEP
General Information
- Product Type: Wireless Access Point
- Product Series: 100
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: WAP121

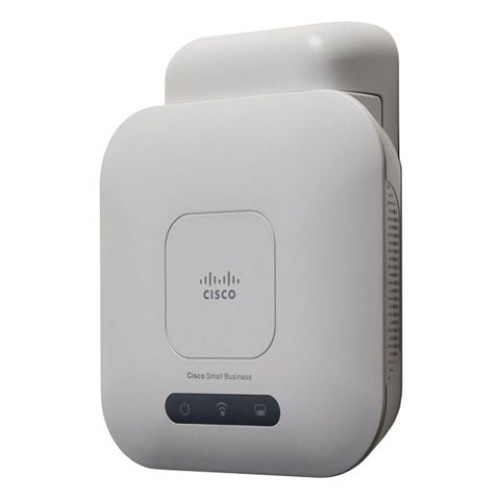

- Product Name: WAP121 Wireless-N Access Point with Power over Ethernet
Physical Characteristics
- Height: 1.4"
- Width: 4.9"
- Depth: 4.9"
- Form Factor:
- Desktop
- Wall Mountable
- Ceiling Mountable
- Weight (Approximate): 5.92 oz
Interfaces/Ports
- Ethernet Port: Yes
- Fast Ethernet Port: Yes
- Gigabit Ethernet Port: No
- 10Gigabit Ethernet Port: No
- Number of Network (RJ-45) Ports: 1
- PoE (RJ-45) Port: Yes
- USB: No
- HDMI: No
- VGA: No
- Audio Line Out: No
- Serial Port: No
- Network (RJ-11): No
- Powerline: No
- Management Port: No
Other
- Package Contents:
- WAP121 Wireless-N Access Point with Power over Ethernet
- Ceiling/Wall Mounting Kit
- Ethernet Network Cable
- 12V, 0.5A Power Supply
- User Guide on CD-ROM
- Quick Start Guide
- WAP121 Wireless-N Access Point with Power over Ethernet
- Ceiling/Wall Mounting Kit
- Ethernet Network Cable
- 12V, 0.5A Power Supply
- User Guide on CD-ROM
- Quick Start Guide
- Certifications & Standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- IEEE 802.11i
- IEEE 802.11e
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1D
- IEEE 802.1X
- FCC class B
- CE
- IC
- System Requirements:
- 802.11b, 802.11g, 802.11n wireless adapter with TCP/IP protocol installed per PC
- Switch/router with PoE support or PoE injector when used with PoE
- Web-based configuration: Java-enabled web browser
- Operating System: Linux
Management & Protocols
- Management:
- Web-Based Management
- Remote Management
- SNMP v3
- Syslog
- DHCP
- VLAN
Power Description
- Input Voltage: 12 V DC
- Power Source: AC Adapter
Warranty
- Limited Warranty: Lifetime
