Additional Information
| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Wireless Security Router
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc
- Product Model: WRV200

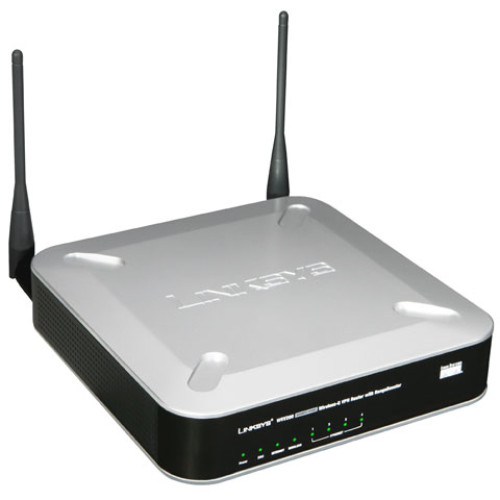

- Product Name: WRV200 Wireless-G VPN Router - RangeBooster
- Product Line: RangeBooster
Physical Characteristics
- Height: 6.9"
- Width: 7.3"
- Depth: 1.9"
- Weight (Approximate): 12.52 oz
Interfaces/Ports
- Number of Network (RJ-45) Ports: 4
- Number of Broadband (RJ-45) Ports: 1
- Management Port: Yes
Other
- Package Contents:
- Wireless-G VPN Router with 2 Fixed Antennae
- User Guide and Set-up Wizard on CD-ROM
- Network Cable
- Power Adapter
- Registration Card
- Quick Install Guide
- White Box with Label
- Wireless-G VPN Router with 2 Fixed Antennae
- User Guide and Set-up Wizard on CD-ROM
- Network Cable
- Power Adapter
- Registration Card
- Quick Install Guide
- White Box with Label
- Certifications & Standards:
- IEEE802.11g
- IEEE802.11b
- IEEE 802.1x
- IEEE 802.11i
- IEEE 802.11e
- FCC
- IC-03
- CE
- Additional Information:
- IPSec Throughput: 30 Mbps 3DES throughput
- NAT Throughput: Wirespeed - 100 Mbps
- Secure wireless access for small offices
- Supports network segmentation for increased security and management
Management & Protocols
- Management:
- SNMP Version 1, 2c
- Event Logging: Local, Syslog, Email
- Built in Web UI for Easy browser-based configuration (HTTP/HTTPS)
- Security Features:
- Access Control List (ACL): MAC and IP-based
- Stateful packet inspection firewall
- Denial of Service prevention
- DMZ
- NAT Throughput
- IPSec Throughput
- VLAN Support
- SSID Broadcast
- Multiple SSID
- VPN:
- 10 IPSec Tunnels
- 3DES/AES Encryption
- MD5
- SHA1 Authentication
- IPSec NAT-T
- Quick VPN support
Wireless Specifications
- Wireless LAN Standard: IEEE 802.11b/g
- ISM Band: Yes
- ISM Maximum Frequency: 2.40 GHz
- Total Number of Antennas: 2
- Wireless Transmission Speed: 54 Mbps
- Antenna Gain: 2 dBi
- Antenna Type: Internal
- Wireless Security:
- WEP 64bit/128bit
- WPA-TKIP/AES
- WPA2-PSK
- WPA2-ENT
- Wireless QoS
- Wireless VLAN Map
- 802.1x - Radius (MD5, SHA1, TLS, TTLS, PEAP) Dynamically Varying Encryption Keys
Warranty
- Limited Warranty: 3 Year
Power Description
- Input Voltage: 12 V DC
